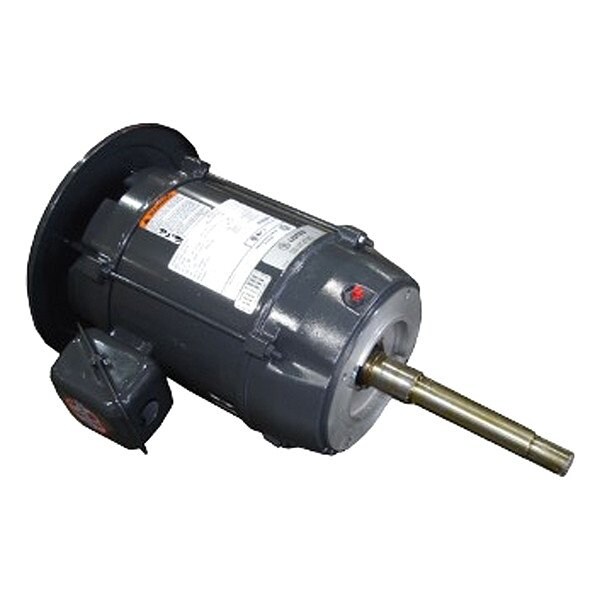

Motor, C-Face, 284JP
- Mfr # HM44
- Zoro # G223358053
product price:Â
$
3,275.99
/ea
Key Features
Wire Rope Length
30 1/8 in
Standards
CE, CSA, ISO9001:2015, UL, United States Department of Energy
Frame Size
284JP
Nameplate Voltage @ 50 Hz
190/380 V AC
Frequency
60 Hz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HM44
- Zoro #
- G223358053
- UPC #
- -
- Country of Origin
- Mexico
- Standards
- CE, CSA, ISO9001:2015, UL, United States Department of Energy
- Nameplate Voltage @ 50 Hz
- 190/380 V AC
- Frequency
- 60 Hz
- Full Load Current @ 60 Hz
- 69.0/34.0 A
- Insulation Class
- F
- Nameplate RPM @ 50 Hz
- 3,450 RPM
- Nameplate Service Factor @ 60 Hz
- 1.15
- Efficiency Rating
- NEMA Premium Efficiency
- Phase
- Three
- Motor Design
- Three-Phase
- Number of Speeds
- 1
- Frame Material
- Steel
- Mounting Position
- All Angle
- Motor Enclosure Type
- Open Drip Proof
- Weight
- 300 lb
- Application
- Pump
- Product Type
- General Purpose Motor
- Ambient Temperature - Maximum
- 40 Degrees C
- Item
- Motor
- NEMA Design Class
- B
- Bearing Lubrication Type
- Regreasable
- Nameplate Voltage @ 60 Hz
- 230/460V AC
- Nameplate RPM @ 60 Hz
- 3,600 RPM
- Nameplate Horsepower @ 60 Hz
- 30 hp
Dimensions
- Wire Rope Length
- 30 1/8 in
- Frame Size
- 284JP
- Overall Length
- 30 1/8 in
- Length
- 30 1/8 in
Description
Motor, Three-Phase, Three Phase, Motor Thermal Protection None, CE, CSA, ISO9001:2015, UL, United States Department of Energy
