Dayton

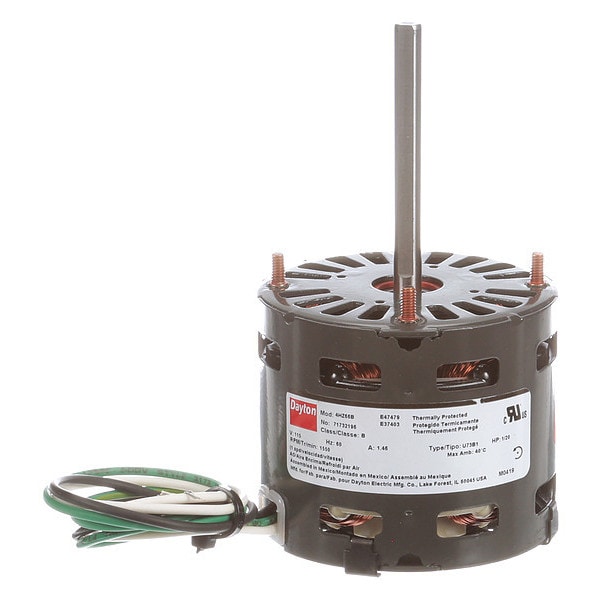

Motor, Sh Pole, 1/25 HP, 1550,115V, 3.3, OAO

product price: $77.25
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Thermal Protection Auto
  • Motor Application HVAC/R
  • Nameplate RPM 1,550
  • Standards cRUus
  • Hz 60 Hz
See all product information

Product Information

Dimensions

Shaft Dia. 5/16 in
Length Less Shaft 2 3/4 in
Shaft Length 3 in
Cord Length 18 in

Details

Motor Thermal Protection Auto
Motor Application HVAC/R
Nameplate RPM 1,550
Standards cRUus
Hz 60 Hz
Max. Ambient Temp. 40 Degrees C
Phase Single
Motor Service Factor 1
Replacement For 4HZ32, 4HZ33, 4HZ34, 4HZ35
Motor Enclosure Design Open Air-Over
HP 1/25
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps 1.4 A
Motor Mounting Position All Angle
Motor Mounting Type Stud
Item Direct Drive Blower Motor
RPM Range 1,501-1,600
Voltage 115V AC
Ins. Class B
Motor Bearings Ball
Motor Shaft Rotation CCWSE
Duty Continuous
Frame 3.3
Motor Shaft Design Flat
Application Mfr. No. 4HZ32, 4HZ33, 4HZ34, 4HZ35
No. of Speeds 1
Motor Design Shaded Pole
Motor Sub Application Direct Drive Fan/Blower
Capacitor Required No
Usable @ 200V No
Duty Cycle Continuous
Usable @ 208V No
Number of Speeds 1
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.4 A, 3.3 Frame, Replacement For 4HZ32, 4HZ33, 4HZ34, 4HZ35, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
