Shop U.S. MOTORS

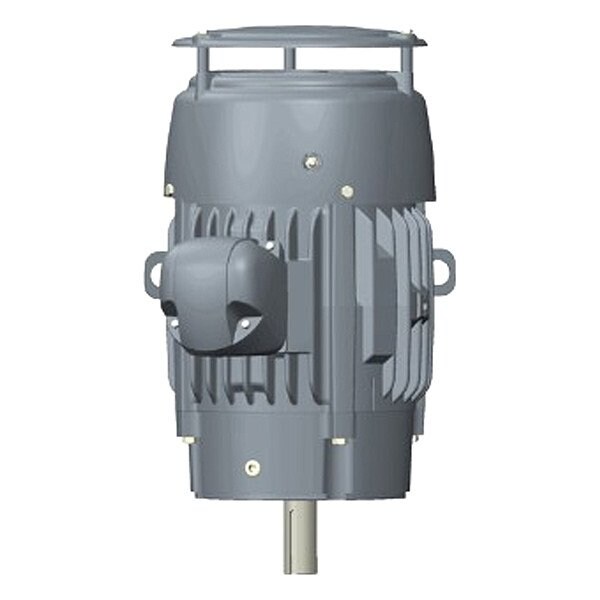

Motor, C-Face, 284TSC

  • Mfr # JK04

  • Zoro # G523357480

product price:
$
3,628.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Mounting Position
Vertical
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
B
Nominal Efficiency
91.7 %
Insulation Class
F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JK04
Zoro #
G523357480
UPC #
-
Country of Origin
Mexico

Dimensions

Frame Size
284TSC

Details

Mounting Position
Vertical
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
B
Nominal Efficiency
91.7 %
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Phase
Three
Nameplate Voltage @ 50 Hz
380, 400, 415V AC
Standards
CE, CSA, ISO 9001:2015, UL, United States Department of Energy
Number of Speeds
1
Bearing Lubrication Type
Regreasable
Manufacturers Warranty
42 mo
Bearing Protection Type
Shaft Slingers
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
58.0/28.8 A
Frame Material
Cast Iron
Frequency
60 Hz
Item
Motor
Nameplate RPM @ 50 Hz
2930/2940/2945/2885/2900/2910 RPM
Motor Design
Three-Phase
Usable @ 200V
Not Usable at 200V
Motor Enclosure Type
Totally Enclosed Fan Cooled
Weight
365 lb

Description

Motor, Three-Phase, Three Phase, Motor Thermal Protection None, Nominal Efficiency 91.7 Percent, CE, CSA, ISO 9001:2015, UL, United States Department of Energy
