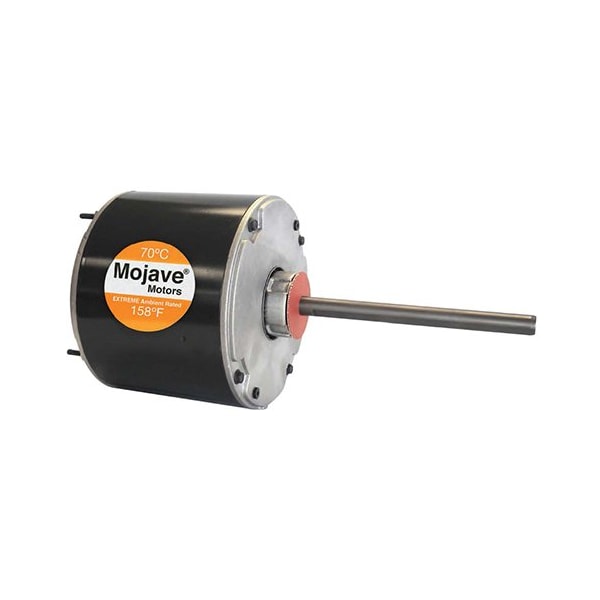

Permanent Split Capacitor Motor, 1/3 hp
Mfr # 1861H
Zoro # G1933341
product price:Â $129.99
/ea
Free Shipping & Returns
Key Features
HP
1/3
Nameplate RPM
1,075
Voltage
208-230V AC
Frame
48
Shaft Dia.
1/2 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
1861H
Zoro #
G1933341
UPC #
786382073787
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Shaft Length
4 5/8 in
Length Less Shaft
6 1/2 in
Overall Length
11 3/32 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Lead Length
48 in
Mounting Stud Length
3/4 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Description
HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.1 A A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Stud
