Shop U.S. MOTORS

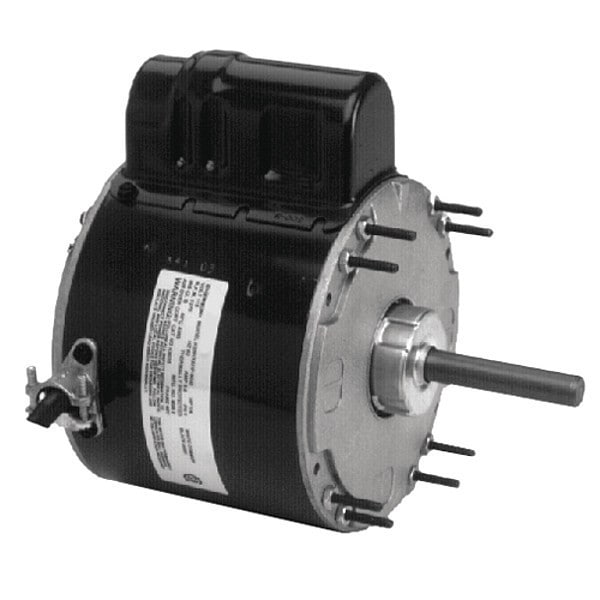

PermanentSplitCapacitorUnitHeaterFan

  • Mfr # 9036

  • Zoro # G0915614

product price:  $262.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/3
Nameplate RPM
1,075
Voltage
115V AC
Frame
48
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9036
Zoro #
G0915614
UPC #
786382075538
Country of Origin
Mexico

Dimensions

Body Dia.
5 1/2 in
Overall Length
5 19/32 in
Shaft Dia.
1/2 in
Shaft Length
4 in
Body Diameter
5.5 in
Frame Size
48Y
Shaft Diameter
1/2 in

Details

Item
Unit Heater Motor
Motor Design
Permanent Split Capacitor
HP
1/3
Nameplate RPM
1,075
Voltage
115V AC
Frame
48
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Hub/Stud
RPM Range
1,001-1,100
Motor Application
HVAC/R
Includes
Capacitor
Motor Service Factor
1
No. of Speeds
1
Full Load Amps
5.1 A
Phase
Single
Motor Thermal Protection
Auto
Motor Sub Application
Unit Heater
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Capacitor Required
Capacitor Included
Weight
15.11 lb
Motor Shaft Design
Ball
Duty Cycle
Continuous
Output Watts
0.3 kW
Bearing Type
Ball
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
5.1 A
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Wattage
300 W
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Product Type
Unit Heater Motor
Number of Speeds
1
Frequency
60 Hz
Duty
Continuous
Sub Application
Unit Heater

Description

Unit Heater Fan, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115V AC, 5.1 A Full Load Amps, 48 Frame, Output Watts 0.3 kW, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Hub/Stud, Shaft Length 4 in, Shaft Dia. 1/2 in
