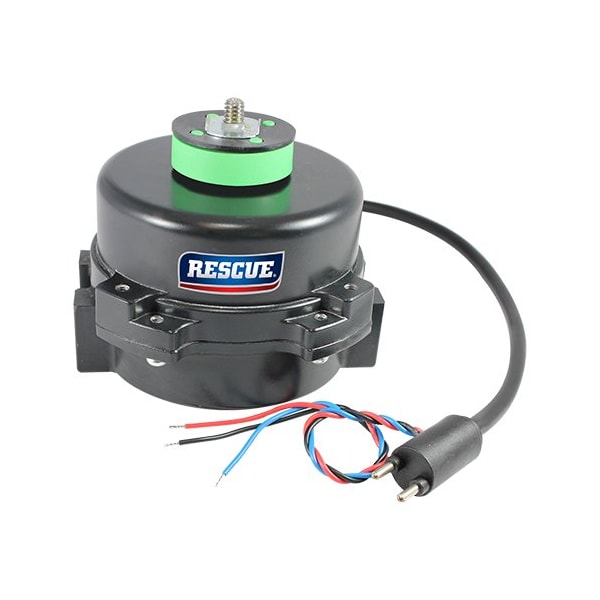

Refrigeration Motor, 1/30 hp
Mfr # EC5414E
Zoro # G100451594
product price: $106.99
/ea
Free Shipping & Returns
Key Features
HP
1/30
Output Watts
4 to 25 W
RPM Range
1,601-1,700
Voltage
115/230V AC
Phase
Single
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EC5414E
Zoro #
G100451594
UPC #
786382118242
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/4 in
Overall Length
3 11/16 in
Body Dia.
3 5/16 in
Length Less Shaft
3 1/4 in
Bolt Circle Dia.
3 3/4 in
Shaft Length
7/16 in
Manufacturers Warranty Length
2 yr
Description
ECM Refrigeration Motor, Single Phase, Motor Design ECM, 1/30 HP, Nameplate RPM 1,650/1,550, No. of Speeds 2, Voltage 115/230V AC, 0.22/0.75 A Full Load Amps, 33 Frame, Output Watts 4 to 25 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Electronic, Ins. Class A, Max. Ambient Temp. 131 Degrees F, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Aluminum
