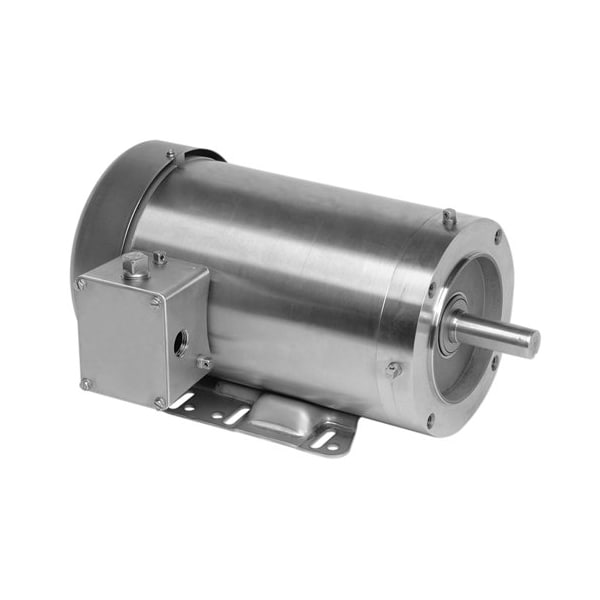

WashdownMotor, 3/4hp, 208-230/460VAC
Mfr # WDS34S1AHC
Zoro # G1929771
product price: $936.99
/ea
Free Shipping & Returns
Key Features
HP
3/4 hp
Nameplate RPM
3,520 RPM
Voltage
208-230/460V AC
Frame
56HC
Shaft Dia.
5/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WDS34S1AHC
Zoro #
G1929771
UPC #
786382105907
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Bolt Circle Dia.
5 7/8 in
Body Dia.
6.5 in
Length Less Shaft
10 in
Overall Length
11 15/16 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 3,520 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.2-2.1/1.0 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
