  10. /
  11. Manual 2-Way Ball Valve, NPT, 304 SS
Shop All Ball Valves
Usa Industrials

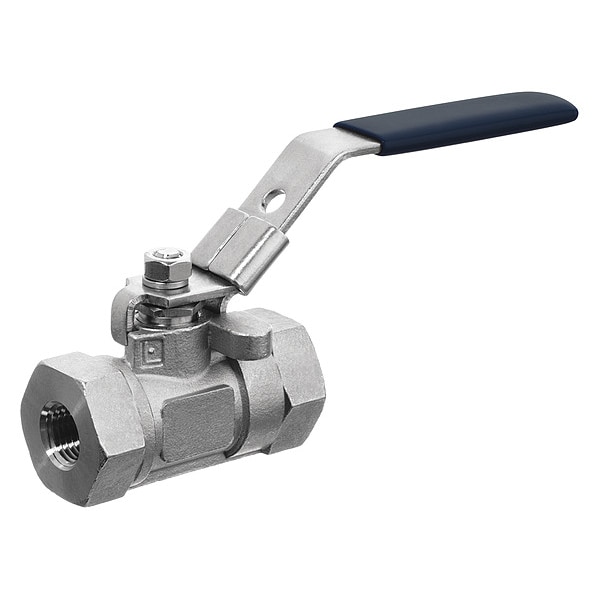

Manual 2-Way Ball Valve, NPT, 304 SS

product price: $41.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1"
  • Body Material 304 Stainless Steel
  • Body Style 1-Way
  • Tube Size 1/4"
  • Max. Steam Pressure 100 psi
See all product information

Product Information

Dimensions

Pipe Size 1"
Tube Size 1/4"
Overall Length 5.55 in
Connection Size - Side 2 1 in
Connection Size - Side 1 1 in
Nominal Valve Size 1 in

Details

Body Material 304 Stainless Steel
Body Style 1-Way
Max. Steam Pressure 100 psi
Body Seal Material RTFE
Standards ANSI/ASME B1.20.1
Item Ball Valve
Seal Material RPTFE
Handle Material 304 Stainless Steel
Handle Type Locking Lever
Valve Structure 1-Piece
Port Standard
Stem Material 304 Stainless Steel
Stem Type Blowout Proof
Compliance ANSI/ASME B1.20.1
Temp. Range -60 Degrees to 450 Degrees F
Seat Material Filled PTFE
Max. Pressure 2,000 psi CWP
Connection Type FNPT
Ball Material 304 Stainless Steel
Coefficient of Volume (Cv) 15
Color - Valve Handle Blue
Connection Type - Side 1 NPT
Operating Temperature - Minimum -60 Degrees F
Operating Temperature - Maximum 450 Degrees F
Connection Gender - Side 1 Female
Valve Ways 2-Way
Maximum Pressure - Steam 100 psi
Ball Port Style Standard Port
Valve Body Style Straight
Connection Type - Side 2 NPT
3-A Standard Compliance Not Rated
Vented Ball Valve Non-Vented
Handle - Locking Locking
For Media Water
Connection Gender - Side 2 Female
Valve Construction One-Piece
Maximum Pressure - Operating 2,000 psi
Maximum Pressure - Combustible Gas Not Rated

Description

Manual Two-Way Ball Valve, Body Material 304 Stainless Steel, For Media Water, Valve Construction One-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 2,000 psi, Maximum Pressure - Steam 100 psi, Maximum Pressure - Combustible Gas Not Rated, Ball Material 304 Stainless Steel, Ball Port Style Standard Port, Handle - Locking Locking, Handle Type Lever

Restrictions
