Shop VAL-MATIC

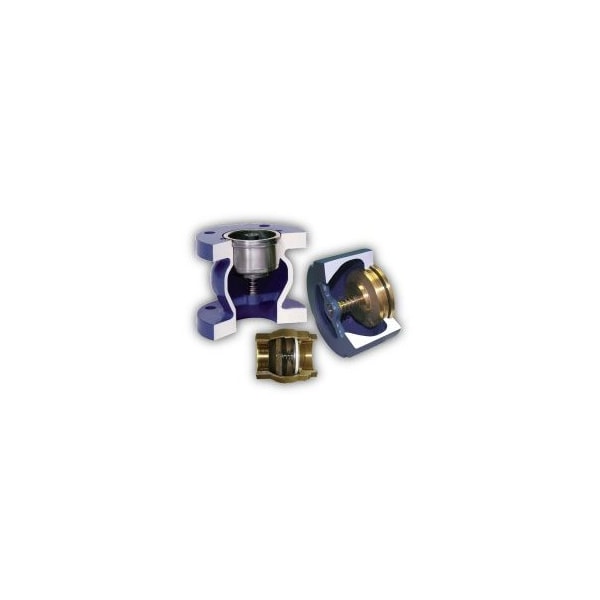

4" Flanged Cast Iron Silent Check Valve

  • Mfr # 1804A-DSY
  • Zoro # G3051361
product price:
$
1,071.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
4"
Connection Type
Flanged
Connection
Flanged
Body Material
Cast Iron ASTM A 126
Max. Pressure
200 psig
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1804A-DSY
Zoro #
G3051361
UPC #
-
Country of Origin
United States
Connection Type
Flanged
Connection
Flanged
Body Material
Cast Iron ASTM A 126
Max. Pressure
200 psig
Seat Material - Check Valves
Bronze
Max. Water Pressure
200 psi
Max. Steam Pressure - Valves
Not Rated
Item - Check Valves
Check Valve
Min. Temp. - Valves
33 Degrees F
Max. Temp.
150 Degrees F
Flow Design
Single
Full Flow - Valves
No
Mounting Position
Vertical or Horizontal
Flow - Valves
400 gpm
Sub-Category
Iron
Standards
ANSI B16.1 Class 125
Body Material - Valves
Cast Iron
Mechanism and Body Design
Inline Silent
Cracking Pressure
0.5 psi
Spring Material - Check Valves
316 Stainless Steel
Material of Construction
Cast Iron ASTM A 126
Flow
228 gpm
Max. Water Pressure - Valves
200 psi
Seal Material - Check Valves
Metal
Mounting Orientation - Check Valves
Horizontal, Vertical
Application - Valves
General Purpose
Connection Type - Check Valves
Flange x Flange
Spring Material
316 Stainless Steel
Item
Silent Check Valve
Seat Material
Bronze
Cracking Pressure - Check Valves
0.5 psi
Max. Temp. - Valves
200 Degrees F
Seal Material
Bronze
Mounting Orientation
Horizontal, Vertical
ANSI Flange Class
Class 125
Silent Check
Silent
Operating Temperature - Maximum
200 Degrees F
For Media
Water
Vacuum Service Rating
Not Rated
Check Mechanism
Double Disc
Operating Temperature - Minimum
33 Degrees F
3-A Standard Compliance
Not Rated
Connection Type - Side 2
Flange
NSF Certifications for Food and Drinking Water
NSF 61
Maximum Pressure - Steam
Not Rated
Connection Type - Side 1
Flange
Valve Body Style
Inline
Maximum Pressure - Operating
200 psi
Type
Silent
Valve Series
1800

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Silent, Body Material - Valves Cast Iron, Pipe or Tube Size 4 in, Connection Type Flange x Flange, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material Metal, Max. Temp. - Valves 200 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 200 psi, Max. Steam Pressure - Valves Not Rated, Seat Material Bronze, Spring Material 316 Stainless Steel
