Valterra

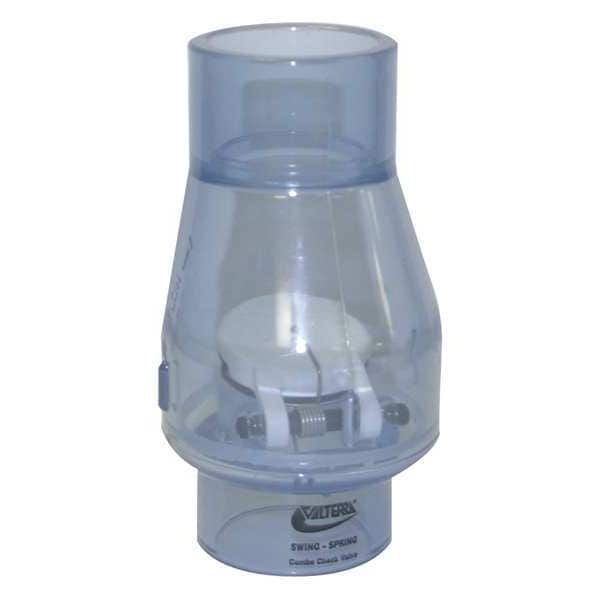

Silent Clear Check Valve 1-1/2"

Valterra Silent Clear Check Valve 1-1/2" 200-C15
Hover or click to zoom Tap to zoom
$16.31
  • Pipe Size: 1 1/2"
  • Connection Type: Slip x Slip
  • Body Material: PVC
See full product details
Orders over $75 ship free.

Total: $16.31

Valterra #200-C15 Specifications

  • Pipe Size: 1 1/2"
  • Connection Type: Slip x Slip
  • Body Material: PVC
  • Max. Steam Pressure - Valves: Not Rated
  • Size: 1 1/2"
  • Item - Check Valves: Check Valve
  • Spring Material - Check Valves: Stainless Steel
  • Connection Type - Check Valves: Slip x Slip
  • Max. Pressure: 150 psi
  • Seat Material: PVC
  • Mounting Position: Horizontal
  • Min. Temp. - Valves: 35 Degrees F
  • Flow - Valves: 150 gpm
  • Width: 3 13/32 in
  • Cracking Pressure - Check Valves: 0.5 psi
  • Seat Material - Check Valves: PVC
  • Mounting Orientation - Check Valves: Horizontal
  • Material of Construction: PVC
  • Pipe or Tube Size - Check Valves: 1 1/2 in
  • Max. Water Pressure - Valves: 150 psi
  • Application - Valves: General Purpose
  • Overall Height: 6 7/64 in
  • Mechanism and Body Design: Inline Spring Swing
  • Body Material - Valves: PVC
  • Flow Design: Single
  • Full Flow - Valves: No
  • Item: Spring Swing Check Valve
  • Length: 3 13/32 in
  • Seal Material - Check Valves: NBR
  • Max. Water Pressure: 150 psi
  • Spring Material: Stainless Steel
  • Seal Material: 40 ShoreNBR
  • Max. Temp. - Valves: 73 Degrees F
  • Max. Temp.: 73 Degrees F
  • Sub-Category: PVC
  • Cracking Pressure: 0.5 psi
  • Mounting Orientation: Horizontal
  • Pipe or Tube Size: 1 1/2 in
  • Length (Straight Wireway): 3 13/32 in
  • Country of Origin (subject to change): United States

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring Swing, Body Material - Valves PVC, Pipe or Tube Size - Check Valves 1 1/2 in, Connection Type - Check Valves Slip x Slip, Cracking Pressure - Check Valves 0.5 psi, Mounting Orientation - Check Valves Horizontal, Seal Material - Check Valves NBR, Max. Temp. - Valves 73 Degrees F, Min. Temp. - Valves 35 Degrees F, Max. Water Pressure - Valves 150 psi, Max. Steam Pressure - Valves Not Rated

Restrictions and Compliance

  • This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
