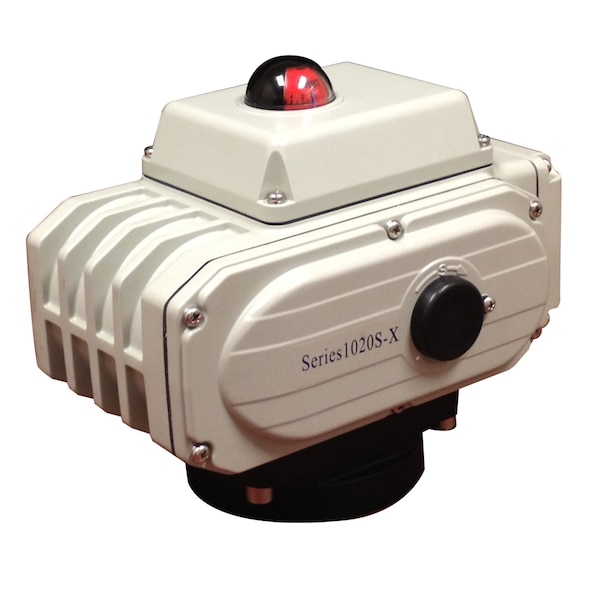

3540inlbs Quarter Turn Electric Actuator, Modulating Service, ISO F07 & F10 Mount, 220VAC Voltage (Discontinued)
- Mfr # 1040/S-X-220VAC
- Zoro # G604946428
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
1040/S-X-220VAC
Zoro #
G604946428
UPC #
-
Country of Origin
United States
Details
Voltage
220VAC
Signal Type
2-10VDC or 4-20mA
Torque
3540inlbs
Description
Model 1040/S-X-220VAC quarter turn electric valve actuator. 220VAC power. Modulating service, NEMA 4X enclosure rating, 3-wire control. ISO F07 & F10 mounts. 3540inlbs (400Nm) torque. Duty cycle of 80%. Run time of 25 seconds. Motor power of 90W. Run current of 0.64A, max current of 1.78A. High vsiibility position indicator. Manual override provision. 4-20mA or 2-10VDC analog control and 4-20mA analog positon feedback. Aluminum body.
