Ventboss By Robovent

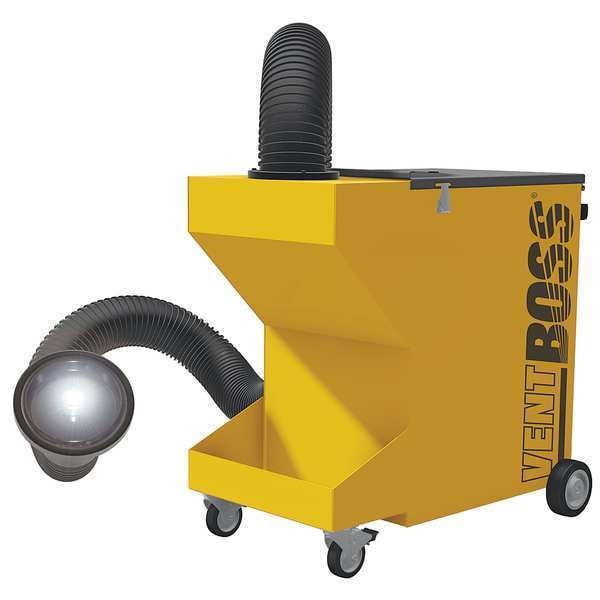

Fume Extractor, Series 100, 60 Hz, 110VAC

product price: $5,801.00
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Air Flow (CFM) 750
  • Input Voltage 110V AC
  • MERV 13
  • Hz 60
  • Includes Led Light Kit
See all product information

Product Information

Dimensions

Depth (In.) 39 in
Width (In.) 20 in
Height (In.) 36 in
Housing Depth 39 in
Housing Width 20 in
Extraction Arm Length (Maximum) 12 ft
Housing Height 36 in
Extraction Arm Diameter 6 in

Details

Item Portable Fume Extractor
Air Flow (CFM) 750
Input Voltage 110V AC
MERV 13
Hz 60
Includes Led Light Kit
Series Series 100
Filter Media Nanofiber
Sound Level dBA 67
Application Manual Welding
Features Acoustic Silencing, Heavy Duty, High Performance Airfoil Blower
Motor HP 0.75 hp
Input (Amps) 13.8 A
Standards CSA Certified, UL Listed
Filter Area 189 sq ft
Maximum Air Flow 750 cfm
Sound Level 67 dB
Housing Material Steel
Filter MERV Rating 15
Frequency 50 Hz, 60 Hz
Filter Type Reusable Cartridge Filter, Spark Arrestor
Current 13.8 A
Compatible Filter Manufacturer Part Number PL-18D16-A15
Process Manual Welding
Motor Horsepower (Maximum) 3/4 hp
Housing Color Black, Yellow
Includes Extraction Arm Yes
Phase Single
Safety Features Built-In Spark Arrestance
Weight 420 lb

Description

Portable Fume Extractor, Maximum Air Flow 750 cfm, Extraction Arm Diameter 6 in, Extraction Arm Length (Maximum) 12 ft, Sound Level 67 dB, Filter Area 189 sq ft, Filter MERV Rating 15, Filter Type Reusable Cartridge Filter, Spark Arrestor, Input Voltage 110V AC, Motor Horsepower (Maximum) 3/4 hp, Series Series 100, Compatible Filter Manufacturer Part Number PL-18D16-A15, Current 13.8 A, Features Acoustic Silencing, Heavy Duty, High Performance Airfoil Blower, Filter Media Nanofiber

Restrictions

  • Hazardous material
