Ventboss By Robovent

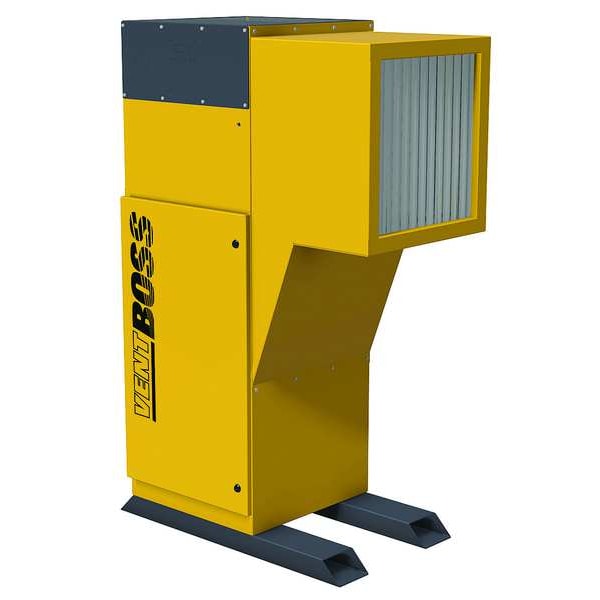

Fume/Smoke Collector, 74x34

product price: $8,196.00
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Air Flow (CFM) 1500
  • MERV 11
  • Input Voltage 480V AC
  • Hz 60
  • Series Series 300
See all product information

Product Information

Dimensions

Depth (In.) 34 in
Height (In.) 74 in
Width (In.) 24 in
Housing Depth 25 in
Housing Height 70 in
Housing Width 24 in

Details

Item Stationary Fume Extractor
Air Flow (CFM) 1500
MERV 11
Input Voltage 480V AC
Hz 60
Series Series 300
Includes Hanging Hardware Kit, Minihelic Filter Gauge
Filter Media PolyDex, Washable
Sound Level dBA 73
Application Manual Welding
Features Acoustic Silencing, Heavy Duty, High Performance Blower
Motor HP 2 hp
Input (Amps) 15 A
Housing Material Steel
Portability Stationary
Current 3.4 A
Weight 370 lb
Filter Type Pulse Cleaning Filter
Sound Level 72 dB
Motor Horsepower (Maximum) 2 hp
Maximum Air Flow 1,500 cfm
Frequency 60 Hz
Filter MERV Rating 15
Phase Three
Process Grinding, Manual Welding
Compatible Filter Manufacturer Part Number PL-14D36-A15-SF
Safety Features Built-In Spark Arrestance

Description

Stationary Fume Extractor, Maximum Air Flow 1,500 cfm, Sound Level 72 dB, Filter MERV Rating 15, Input Voltage 480V AC, Motor Horsepower (Maximum) 2 hp, Series Series 300, Compatible Filter Manufacturer Part Number PL-14D36-A15-SF, Current 3.4 A, Features Acoustic Silencing, Heavy Duty, High Performance Blower, Filter Media PolyDex, Washable, Frequency 60 Hz, Housing Depth 25 in, Housing Height 70 in, Housing Material Steel
