Ventboss By Robovent

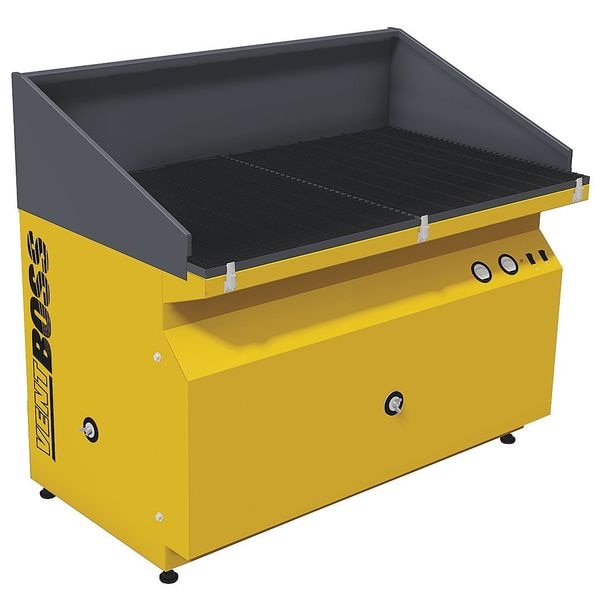

Fume/Smoke Collector, Down, 2560 CFM

product price: $13,148.00
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Air Flow (CFM) 2560
  • Input Voltage 110V AC
  • MERV 11
  • Hz 60
  • Includes Minihelic Filter Gauge
See all product information

Product Information

Dimensions

Width (In.) 61 in
Height (In.) 37 in
Depth (In.) 37 in
Overall Depth 29 in
Overall Width 61 in
Overall Height 52 in

Details

Item Fume/Smoke Collector
Air Flow (CFM) 2560
Input Voltage 110V AC
MERV 11
Hz 60
Includes Minihelic Filter Gauge
Series 200, Booth
Filter Media Nanofiber
Sound Level dBA 70
Application Manual Welding
Features Acoustic Silencing, Built-In 3 Layer Spark Arrestance, Compressed Air Filter Cleaning, Compressed Air Pulse Cleaning System with Onboard Tank, Drop Down Side Screens, High Performance Blower, Workstation Unit
Input (Amps) 15 A
Motor HP 1.5 hp
Phase Single
Current 16 A
Weight Capacity 700 lb
Housing Material Steel
Work Table Type Down Draft Table
Sound Level 72 dBA
Maximum Air Flow 2,560 cfm
Frequency 60 Hz
Filter Type Cartridge
Work Surface Pattern Steel Bar Grate
Compatible Filter Manufacturer Part Number PL-18D12-A15-C
Filter MERV Rating 11
Motor Horsepower (Maximum) 1 1/2 hp
Process Grinding, Manual Welding
Work Surface Material Steel

Description

Fume/Smoke Collector, Maximum Air Flow 2,560 cfm, Compatible Filter Manufacturer Part Number PL-18D12-A15-C, Current 16 A, Features Acoustic Silencing, Built-In 3 Layer Spark Arrestance, Compressed Air Filter Cleaning, Compressed Air Pulse Cleaning System with Onboard Tank, Drop Down Side Screens, High Performance Blower, Workstation Unit, Filter Media Nanofiber, Filter MERV Rating 11, Filter Type Cartridge, Frequency 60 Hz, Housing Material Steel, Includes Minihelic Filter Gauge
