  5. Air Operated Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 12 gpm GPM 220 Degrees F

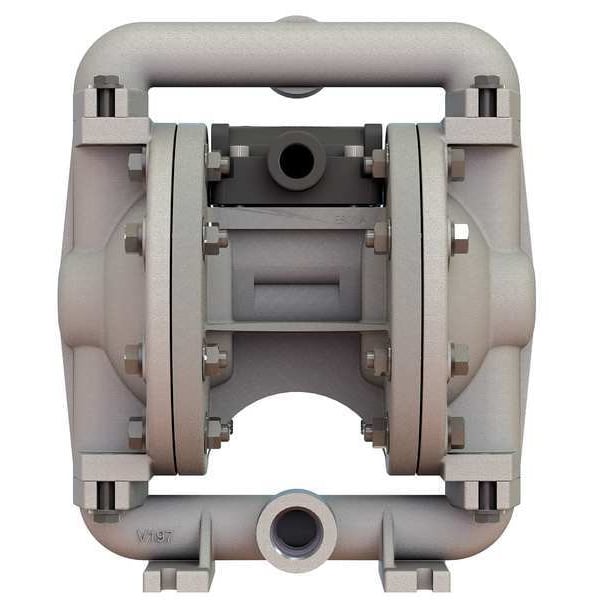

Versa-Matic Air Operated Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 12 gpm GPM 220 Degrees F E5SP5F559C-FP - main

Air Operated Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 12 gpm GPM 220 Degrees F

  • Mfr # E5SP5F559C-FP

  • Zoro # G6651513

product price:  $3,301.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E5SP5F559C-FP
Zoro #
G6651513
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/8 in FNPT
Manufacturers Warranty Length
5 yr
Overall Length
8.2 in
Overall Height
10.4 in
Overall Width
8-1/8 in
Solid Diameter (Maximum)
1/16 in
Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
12 scfm
Air Intake Connection Type
NPT
Check Seat Material
PTFE
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Agency Compliance
CE, EAC, FDA
Self-Priming Wet
22 ft
Standards
CE Certified, EAC, FDA Compliant
Self-Priming Dry
13 ft
Inlet/Outlet
1/2 in
For Use With
Applications requiring FDA approval
For Use With Potable Systems
No
Series Family
E5
Manifold Connection Type
Tri-Clamp
Media Discharge Connection Type
Tri-Clamp
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 40%, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sulfuric Acid 10%, Water
Flow Rate @ 80 psi
11.5 gpm
Flow Rate @ 60 psi
11 gpm
Media Intake Connection Type
Tri-Clamp
Flow Rate @ 40 psi
9.5 gpm
Media Discharge Location
Top
Flow Rate @ 100 psi
12 gpm
Feet of Head (Maximum)
231 ft
Priming
Self-Priming
Flow Rate (Maximum)
12 gpm
Air Intake Pressure (Maximum)
100 psi
Media Intake Location
Bottom
Wetted Housing Material
Stainless Steel
Flow Rate @ 20 psi
8 gpm

Description

Air Operated Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 3/8 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 12 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Tri-Clamp
