Shop All Diaphragm Pumps
Everflo

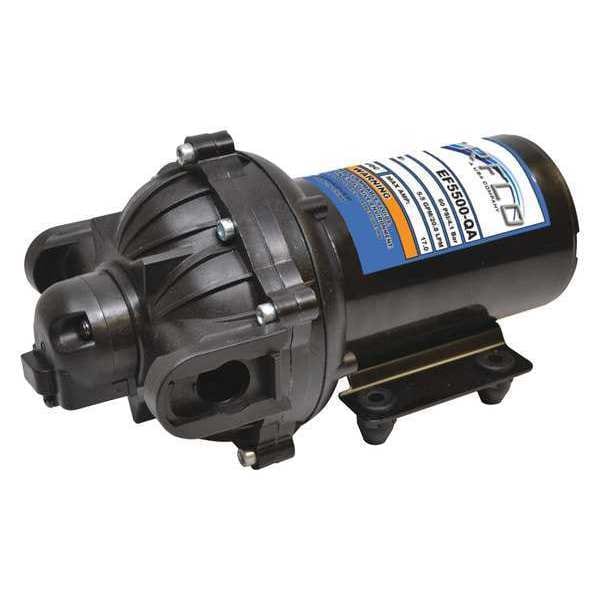

Sprayer Pump, Inlet/Outlet 3/4" QC

product price: $143.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Pressure - Pumps 60 psi
  • Housing Material - Pumps Polypropylene
  • Max. Flow 5.5 gpm
  • Voltage - Pumps 12V DC
  • Max. Temp - Pumps 140 Degrees F
See all product information

Product Information

Dimensions

Width (In.) 5.2 in
Length (In.) 8.75 in
Height (In.) 4.76 in
Intake Connection Size 3/4 in
Overall Height 4.8 in
Discharge Connection Size 3/4 in
Overall Length 8.8 in
Overall Width 5.2 in

Details

Max. Pressure - Pumps 60 psi
Housing Material - Pumps Polypropylene
Max. Flow 5.5 gpm
Voltage - Pumps 12V DC
Max. Temp - Pumps 140 Degrees F
Agency Compliance CE
Motor Type Totally enclosed Nonventilated
Check Valve Viton(R)
Includes Zinc-Plated Steel Fasteners
Pressure Switch Yes
Features Glyphosate Compatible, Honeywell(TM) Micro-Switch
Fuse Amps 17 A
GPM @ 20 PSI 5.0
Diaphragm Material Santoprene
Type Diaphragm
GPM @ 40 PSI 4.2
Diaphragm Design Five Chamber
Prime in Feet 8
Item Electric Sprayer Pump
Pressure Off 60 psi
Self-Priming Yes
Pressure On 57 psi
Inlet/Outlet 3/4 in QC
GPM @ 0 PSI 5.8
Operation Type Air Operated
Flow Rate (Maximum) 5.5 gpm
Current 17 A
Check Valve Material Viton
Motor Enclosure Totally Enclosed Nonventilated
Media Temperature (Maximum) 140 Degrees F
Nameplate Voltage 12V DC
Series EF5500
Flow Rate @ 0 psi 5.8 gpm
Intake Connection Type Quick Connect
Operating Pressure (Maximum) 60 psi
Flow Rate @ 20 psi 5 gpm
Discharge Connection Type Quick Connect
Diaphragm Chamber Design 5
Priming Self-Priming
Flow Rate @ 40 psi 4.2 gpm
Flow Rate @ 60 psi 3.5 gpm
Housing Material Polypropylene

Description

Electric Sprayer Pump, Air Consumption (Maximum) Not Applicable, Air Intake Pressure (Maximum) Not Applicable, Operating Pressure (Maximum) 60 psi, Air Intake Connection Size Not Applicable, Air Intake Connection Type Not Applicable, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 3/4 in, Discharge Connection Type Quick Connect, Flow Rate (Maximum) 5.5 gpm, Housing Material Polypropylene, Intake Connection Size 3/4 in
