  9. Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 177 gpm GPM 220 Degrees F

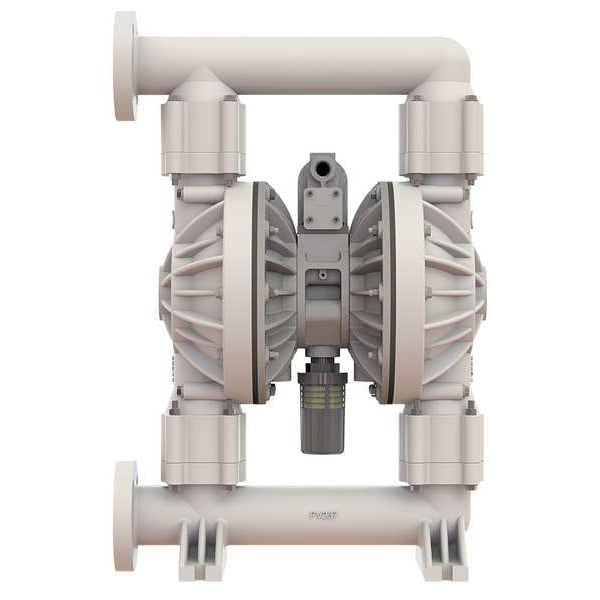

Versa-Matic Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 177 gpm GPM 220 Degrees F E2PA5F5T9C - main

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 177 gpm GPM 220 Degrees F

  • Mfr # E2PA5F5T9C

  • Zoro # G6125892

product price: $5,221.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2PA5F5T9C
Zoro #
G6125892
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Manufacturers Warranty Length
1 yr
Overall Length
12.6 in
Overall Width
19-53/64 in
Overall Height
30.3 in
Solid Diameter (Maximum)
1/4 in
Media Intake Connection Size
2 in
Media Discharge Connection Size
2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
120 scfm
Air Intake Connection Type
FNPT
Check Seat Material
PTFE
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
16 ft
Agency Compliance
CE, EAC
Self-Priming Wet
32 ft
Standards
CE Certified, EAC
Inlet/Outlet
2 in
Air Intake Pressure (Maximum)
100 psi
Flow Rate @ 40 psi
38 gpm
Flow Rate @ 10 psi
58 gpm
Wetted Housing Material
Polypropylene
Flow Rate @ 90 psi
30 gpm
Series
E
Flow Rate @ 50 psi
40 gpm
Flow Rate @ 70 psi
4 gpm
Series Family
E2
Duty Cycle
Continuous
Flow Rate @ 30 psi
40 gpm
Feet of Head (Maximum)
260 ft
Media Intake Connection Type
Flange
Flow Rate (Maximum)
177 gpm
Flow Rate @ 80 psi
38 gpm
Flow Rate @ 15 psi
40 gpm
Flow Rate @ 60 psi
38 gpm
Flow Rate @ 100 psi
40 gpm
Flow Rate @ 20 psi
50 gpm
Media Discharge Connection Type
Flange
Priming
Self-Priming
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Hydrochloric Acid 10%, Hydrochloric Acid 100%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 100%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Sulfuric Acid 90%, Water
Media Intake Location
Bottom
Media Discharge Location
Top

Description

Double Diaphragm Pump, Air Consumption (Maximum) 120 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material PTFE, Diaphragm Material PTFE, Feet of Head (Maximum) 260 ft, Flow Rate (Maximum) 177 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type Flange, Media Discharge Location Top, Media Intake Connection Size 2 in, Media Intake Connection Type Flange, Media Intake Location Bottom
