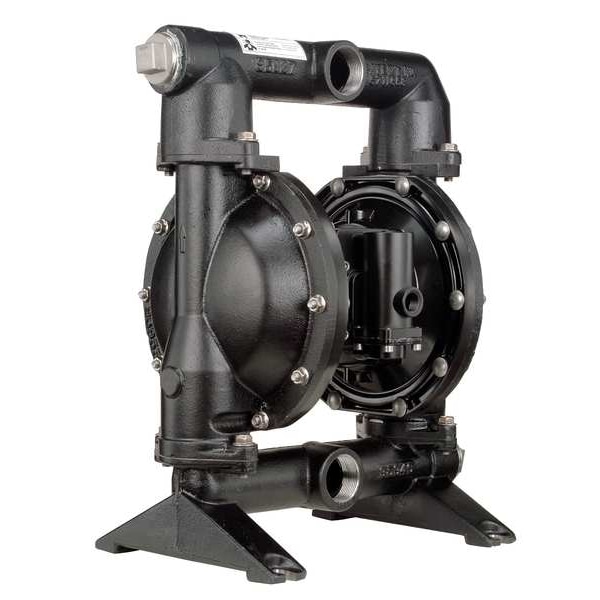

Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 123 GPM

Mfr # PD15A-ACP-AAA
Zoro # G1612877

$2,378.99

/ea

Item requires special delivery charges. A $125.00 per item surcharge will be applied.

Free 30-Day Returns

Key Features

Housing Material - Pumps Cast Iron
Diaphragm Material - Pumps Santoprene(R)
Max. Flow 123 gpm
Pump Operation Type Air
Max. Temp - Pumps 200 Degrees F

See all product information

Brand Aro
MFR # PD15A-ACP-AAA
Zoro # G1612877
Country of Origin United States
Category Diaphragm Pumps

Dimensions

Inlet/Outlet Size	1 1/2 in
Air Inlet Size	1/2 in FNPT
Max. Dia. Solids	1/4 in
Manufacturers Warranty Length	5 yr
Length	14 5/8 in
Height	19 5/8 in
Width	14 in
Overall Height	19.6 in
Overall Length	14.9 in
Overall Width	14 in
Solid Diameter (Maximum)	0.25 in
Air Intake Connection Size	1/2 in
Media Discharge Connection Size	1 1/2 in
Media Intake Connection Size	1 1/2 in

Details

Housing Material - Pumps	Cast Iron
Diaphragm Material - Pumps	Santoprene(R)
Max. Flow	123 gpm
Item - Air Operated Pumps	Double Diaphragm Pump
Pump Operation Type	Air
Max. Temp - Pumps	200 Degrees F
Connection Style	NPT
Agency Compliance	ATEX, CE, REACH, RoHS
Diaphragm Material	Santoprene
Body Material	Cast iron
Max. Flow GPM	123
Self-Priming Dry	14 ft
Max. Temp.	200 Degrees F
Ball Material	Santoprene(R)
Max. Operating Pressure	120 psi
Item	Double Diaphragm Pump
Check Seat Material	Santoprene
Operation Type	Air Operated
Valve Type	Ball
Manifold Connection	Single Port
Standards	CE, REACH, RoHS
Media Temperature (Maximum)	225 Degrees F
Flow Rate (Maximum)	130 gpm
Flow Rate @ 120 psi	130 gpm
Viscosity (Maximum)	40,000 cps
Feet of Head (Maximum)	289 ft
NPSHr	24.5 ft of head
Series Family	EXP
Media Intake Location	Center, Side
Air Consumption (Maximum)	100 scfm
Air Intake Pressure (Maximum)	120 psi
Air Intake Connection Type	NPT
Flow Rate @ 100 psi	125 gpm
Flow Rate @ 40 psi	75 gpm
Flow Rate @ 60 psi	101.4 gpm
For Use With Potable Systems	No
Mounting Hardware Material	Plated Steel
Pump Assembly Type	Bolt
Chemical Compatibility	Alcohol, Antifreeze, Diesel Exhaust Fluid, Water
Priming	Self-Priming
Wetted Housing Material	Cast Iron
Media Discharge Location	Center, Side
Manifold Connection Type	NPT
Valve Material	Santoprene
Flow Rate @ 50 psi	91.5 gpm
Nameplate Voltage	N
Operating Pressure (Maximum)	120 psi
Flow Rate @ 90 psi	121.6 gpm
Non-Wetted Housing Material	Aluminum
Flow Rate @ 70 psi	108 gpm
Media Temperature (Minimum)	-40 Degrees F
Media Discharge Connection Type	NPTF
Flow Rate @ 80 psi	116.5 gpm
Media Intake Connection Type	NPTF
Series	PX15X

Description

Double Diaphragm Pump, Air Consumption (Maximum) 100 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Santoprene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 130 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type NPTF
