  9. Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 155 GPM

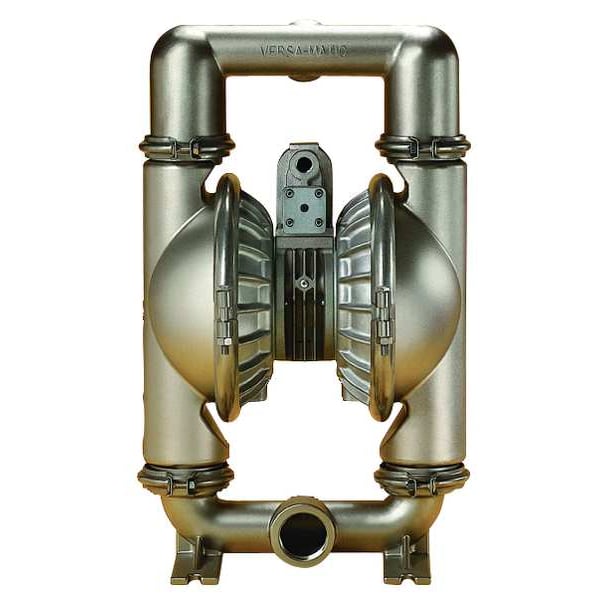

Versa-Matic Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 155 GPM E2SA5T5S0C-ATEX - main

Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 155 GPM

  • Mfr # E2SA5T5S0C-ATEX

  • Zoro # G2916155

product price: $5,687.99
/ea
Additional $95.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2SA5T5S0C-ATEX
Zoro #
G2916155
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Manufacturers Warranty Length
1 yr
Overall Length
13.5 in
Overall Width
16-1/2 in
Overall Height
26.7 in
Solid Diameter (Maximum)
1/4 in
Media Discharge Connection Size
2 in
Media Intake Connection Size
2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
140 scfm
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Operating Pressure (Maximum)
125 psi
Agency Compliance
ABS, ATEX, CE, EAC
Self-Priming Wet
20 ft
Self-Priming Dry
10 ft
Pump Operation Type
Air
Standards
ABS Type Approved, ATEX Certified, CE Certified, EAC
Inlet/Outlet
2 in
Feet of Head (Maximum)
320 ft
Flow Rate @ 40 psi
108.5 gpm
For Use With Potable Systems
No
Media Discharge Connection Type
NPT
Series Family
E2
Duty Cycle
Continuous
Flow Rate @ 100 psi
146.5 gpm
Media Intake Location
Bottom, Center
Flow Rate @ 60 psi
124.1 gpm
Media Intake Connection Type
NPT
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 40%, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sulfuric Acid 10%, Water
Flow Rate (Maximum)
169 gpm
Flow Rate @ 20 psi
82.1 gpm
Priming
Self-Priming
Wetted Housing Material
316 Stainless Steel
Air Intake Pressure (Maximum)
125 psi
Flow Rate @ 80 psi
136.4 gpm
Manifold Connection Type
NPT
Media Discharge Location
Center, Top

Description

Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) 320 ft, Flow Rate (Maximum) 160 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 2 in, Media Intake Connection Type NPT
