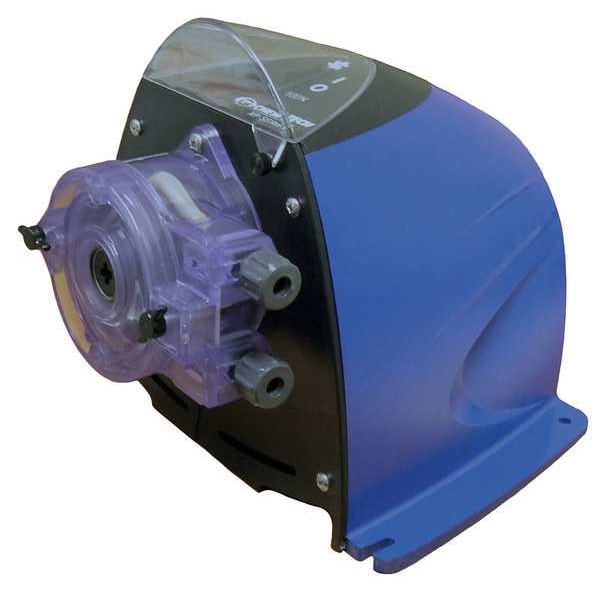

Pulsafeeder Metering Pump, 7 GPD, 125 PSI

  • Mfr # XP007LFHXG19

  • Zoro # G2518686


product price: $389.99
/ea
Free Shipping & Returns

Key Features

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Fixed
Voltage
115
Max. Flow (gpd) - Pumps
7.00 gpd
Max. Pressure - Pumps
125 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XP007LFHXG19
Zoro #
G2518686
UPC #
-
Country of Origin
United States

Dimensions

Width
9 7/8 in
Cord Length
6 ft
Length
10 15/16 in
Height
8 1/4 in
Overall Length
9.8 in
Overall Height
8.2 in
Overall Width
10.9 in
Discharge Connection Size
1/4 in
Intake Connection Size
1/4 in

Details

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Fixed
Voltage
115
Max. Flow (gpd) - Pumps
7.00 gpd
Max. Pressure - Pumps
125 psi
Voltage - Pumps
115V AC
Phase - Pumps
1
Max. Viscosity - Pumps
300 cps
HP - Pumps
1/6 hp
Reproducibility - Pumps
+/-2.0%
Tubing Material - Peristaltic Pumps
Norprene
Motor RPM
50 RPM
Ball Material
TFE
Max. Pressure
125 psi
Head and Fitting Material - Pumps
PVC
Suction Lift
24 ft
Body Material
ABS
Min. Flow Rate
0.7 gpd
Includes
Injection Assembly, Rain Hood, Spare Tube Assembly and 15 ft of Suction/Discharge Tubing, Strainer
Item - Chemical Metering Pumps
Chemical Metering Pump
Tubing Material
Neoprene
Hz
60
Reproducibility
+/-2.0%
Phase
Single
Standards
cETL, ETL, ETL Sanitary, NSF 61 Certified
Motor HP
1/6
Max. Viscosity
300 cps
Pump Type
Peristaltic
Number of Feeds
Single Head
Self-Priming
Yes
Features
Fixed Rate, High Presure
Item
Chemical Metering Pump
cc/Min.
18.29 cc/min
Fitting Material
PVC
Motor Speed (Maximum)
50 RPM
Pressure (Maximum)
125 psi
Chemical Compatibility
Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Oils, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Water
Degassing Valve Included
Yes
Viscosity (Maximum)
300 cps
Head Material
PVC
Flow Rate (Maximum)
7 gpd
Priming
Self-Priming
Housing Material
ABS
Control Programs
Manual Control
Intake Connection Type
Tube
Horsepower (Maximum)
4/25 hp
Nameplate Voltage
115V AC
Motor Mounting Type
Horizontal
Ambient Temperature (Maximum)
104 Degrees F
Discharge Connection Type
Tube
Media Temperature (Maximum)
104 Degrees F
Frequency
60 Hz

Description

Peristaltic Chemical Metering Pump, Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10 Percent, Hydrochloric Acid 20 Percent, Hydrochloric Acid 30 Percent, Oil, Phosphoric Acid 40 Percent, Potassium Hydroxide 50 Percent, Sodium Hydroxide 20 Percent, Sodium Hypochlorite 10 Percent, Sodium Hypochlorite 20 Percent, Sodium Hypochlorite 5 Percent, Sulfuric Acid 10 Percent, Sulfuric Acid 20 Percent, Water, Control Programs Manual Control
