Shop All Vibrators
Vibco

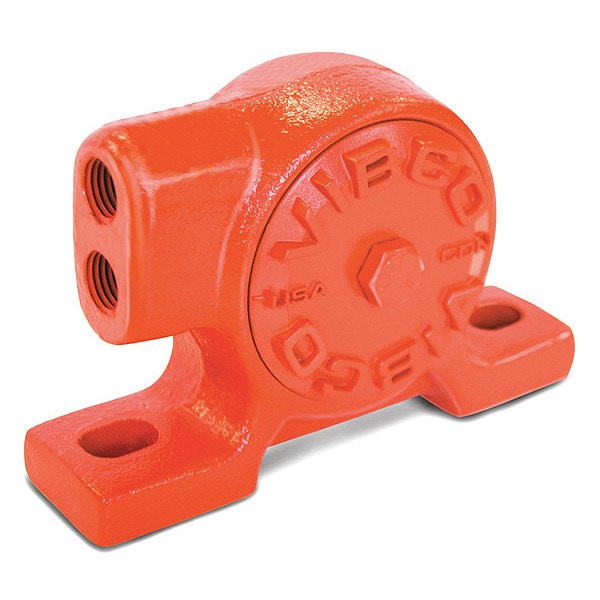

Pneumatic Vibrator, 260lb, 14,000vpm, 80psi

product price: $243.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Ball
  • Force Rating 260 lb.
  • CFM @ 80 PSI 11
  • Speed @ 60 psi 14,000 VPM
  • Speed @ 80 psi 16,000 VPM
See all product information

Product Information

  • Brand Vibco
  • MFR # V-190
  • Zoro # G0419282
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 5-1/16"
Overall Width 2-3/16"
Overall Height 3-3/16"
Mount Hole Size 10
Inlet Connection Size 1/4 in
Outlet Connection Size 1/4 in
Mount Hole Center-to-Center Width 102 mm

Details

Vibrator Type Ball
Item Pneumatic Vibrator
Force Rating 260 lb.
CFM @ 80 PSI 11
Speed @ 60 psi 14,000 VPM
Speed @ 80 psi 16,000 VPM
dB @ 60 psi 73
dB @ 80 psi 73
Bin Weight Capacity 2600 lb.
Inlet Port 1/4" NPT
Outlet Port 1/4" NPT
CFM @ 60 psi 10
Mounting Plate Sold Separately
Max. Temp. 350 Degrees F
Duty Continuous
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
Max. Pressure 80 psi
Mounting Universal
Ball Material Hardened Steel
Muffler 1A326
Housing Material Cast iron
Mount Plate Required Yes
Weight 2.5 lb
Vibration Speed @ 60 psi 14,000 vpm
Vibration Speed @ 80 psi 16,000 vpm
Series V
Sound Level 73 dBA
Mount Type Universal
Vibration Speeds @ PSI 12,000 vpm @ 40 psi, 14,000 vpm @ 60 psi, 16,000 vpm @ 80 psi
Force @ 80 psi 260 lbf
Maximum Force 260 lbf
Maximum Vibration Speed 16,000 vpm
Pneumatic Vibrator Type Ball
Air Flow Rate 10 cfm @ 60 psi, 11 cfm @ 80 psi, 6 cfm @ 40 psi
Duty Cycle Continuous
Maximum Inlet Pressure 80 psi
Force @ PSI 260 lbf @ 80 psi
Inlet Connection Type NPT
Outlet Connection Type NPT
Mount Plate Included No
Maximum Operating Temperature 350 Degrees F
Maximum Bin Weight Capacity 2,600 lb

Description

Pneumatic Vibrator, Housing Material Cast Iron, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Air Flow Rate 10 cfm @ 60 psi, 11 cfm @ 80 psi, 6 cfm @ 40 psi, Maximum Force 260 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 16,000 vpm, Maximum Bin Weight Capacity 2,600 lb, Overall Height 3.19 in, Overall Length 2.2 in, Overall Width 5.08 in, Sound Level 73 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball, Force @ PSI 260 lbf @ 80 psi
