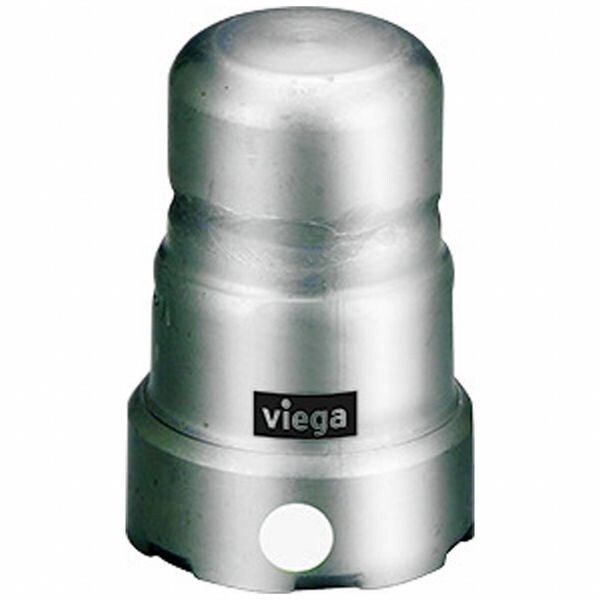

Cap, Stainless Steel, Press-fit 1 1/4 in
Mfr # 95825
Zoro # G406427637
product price:Â
$
72.19
/ea
Key Features
Specific Fitting Shape
Cap
Fitting Connection Type
Press-fit
Standards
ANSI/CAN/UL 213, ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, FM Class 1923, IAPMO Z1117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R
Maximum Operating Temperature
284 Degrees F
Resistance Properties
High Temperature-Resistant, Oil-Resistant, Ozone-Resistant, Petroleum-Based Additive-Resistant, Weathering-Resistant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 95825
- Zoro #
- G406427637
- UPC #
- 691514958255
- Country of Origin
- Germany
- Item
- Crimp Fitting Cap
- Specific Fitting Shape
- Cap
- Fitting Connection Type
- Press-fit
- Standards
- ANSI/CAN/UL 213, ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, FM Class 1923, IAPMO Z1117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R
- Maximum Operating Temperature
- 284 Degrees F
- Resistance Properties
- High Temperature-Resistant, Oil-Resistant, Ozone-Resistant, Petroleum-Based Additive-Resistant, Weathering-Resistant
- Color
- Silver
- Application
- Air, Non-Potable Water, Steam
- Compatible Tool Brand
- Milwaukee, Ridgid
- Maximum Operating Pressure
- 200 psi
- Compatible Pipe Material
- Stainless Steel
- Vacuum Rating
- 29.2 inHG @ 160 Degrees F
- Material Grade
- 304
- Fitting Material
- Stainless Steel
- O-Ring Material
- FKM
- Minimum Operating Temperature
- 14 Degrees F
- Operating Temperature - Minimum
- 14 Degrees F
- For Media Type
- Air, Non-Potable Water, Gases
- Fitting Shape
- Cap
- Operating Temperature - Maximum
- 284 Degrees F
- Operating Pressure - Maximum
- 200 psi
Description
Crimp Fitting Cap, Application Air, Non-Potable Water, Steam, Compatible Copper Tube Size Not Applicable, Compatible Pipe Size 1 1/4 in, Fitting Connection Type Press-fit, Fitting Material Stainless Steel, Material Grade 304, O-Ring Material FKM, Specific Fitting Shape Cap, Overall Length 3 in, Includes Center Stop Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 284 Degrees F
