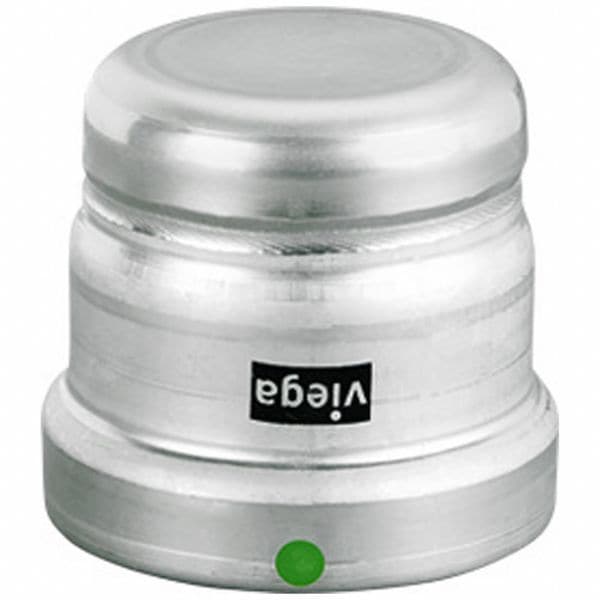

Cap, Stainless Steel, Press-fit 4 in
Mfr # 90715
Zoro # G906427793
product price:Â
$
423.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
Cap
Fitting Connection Type
Press-fit
Standards
ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, IAPMO Z1117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61
Maximum Operating Temperature
250 Degrees F
Compatible Tool Brand
Milwaukee, Ridgid
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 90715
- Zoro #
- G906427793
- UPC #
- 691514907154
- Country of Origin
- Germany
- Item
- Crimp Fitting Cap
- Specific Fitting Shape
- Cap
- Fitting Connection Type
- Press-fit
- Standards
- ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, IAPMO Z1117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61
- Maximum Operating Temperature
- 250 Degrees F
- Compatible Tool Brand
- Milwaukee, Ridgid
- Application
- Air, Non-Potable Water, Potable Water, Steam
- Maximum Operating Pressure
- 200 psi
- Material Grade
- 316
- Resistance Properties
- Alkaline Solutions-Resistant, Ozone-Resistant, Weathering-Resistant
- Color
- Silver
- Compatible Pipe Material
- Stainless Steel
- Vacuum Rating
- 29.2 inHG @ 160 Degrees F
- Fitting Material
- Stainless Steel
- Minimum Operating Temperature
- 0 Degrees F
- O-Ring Material
- EPDM
- For Media Type
- Air, Non-Potable Water, Potable Water, Gases
- Operating Temperature - Maximum
- 250 Degrees F
- Fitting Shape
- Cap
- Operating Temperature - Minimum
- 0 Degrees F
- Operating Pressure - Maximum
- 200 psi
Description
Crimp Fitting Cap, Application Air, Non-Potable Water, Potable Water, Steam, Compatible Copper Tube Size Not Applicable, Compatible Pipe Size 4 in, Fitting Connection Type Press-fit, Fitting Material Stainless Steel, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Cap, Overall Length 5 3/16 in, Includes Center Stop Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
