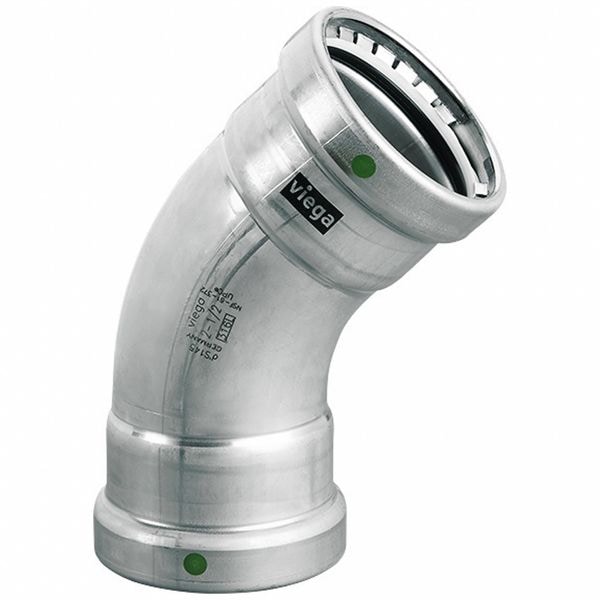

Elbow, SS, Press-fit 2 1/2", 2 1/2"
Mfr # 90530
Zoro # G606427802
product price:Â
$
402.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
45 Degrees Elbow
Standards
ABS Type approval ASME B31.1, ANSI 372FM Class 1920, NSF/ANSI 61, ANSI/CAN/UL 213, ASME B301, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RNSF
Fitting Material
Stainless Steel
O-Ring Material
EPDM
Fitting Side A Tube Outer Diameter
2 1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 90530
- Zoro #
- G606427802
- UPC #
- 691514905303
- Country of Origin
- Germany
- Item
- Crimp Elbow Fitting
- Specific Fitting Shape
- 45 Degrees Elbow
- Standards
- ABS Type approval ASME B31.1, ANSI 372FM Class 1920, NSF/ANSI 61, ANSI/CAN/UL 213, ASME B301, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RNSF
- Fitting Material
- Stainless Steel
- O-Ring Material
- EPDM
- Fitting Side B Connection Type
- Press-Fit
- Material Grade
- 316
- Fitting Side A Connection Type
- Press-Fit
- Application
- Marine
- Color
- Silver
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Maximum Operating Pressure
- 200 psi
- Minimum Operating Temperature
- 0 Degrees F
- Compatible Tool Brand
- Milwaukee, Ridgid
- Compatible Tube Material
- Stainless Steel
- Maximum Operating Temperature
- 250 Degrees F
- Fitting Side 2 Connection Type
- Press-fit
- Operating Temperature - Maximum
- 250 Degrees F
- Compatible Tube Hardness
- Schedule 5 to Schedule 40
- Fitting Side 1 Connection Type
- Press-fit
- Operating Temperature - Minimum
- 0 Degrees F
- Fitting Shape
- 45 Degrees Elbow
- Operating Pressure - Maximum
- 200 psi
- For Media Type
- Compressed Air, Potable Water
Description
Crimp Elbow Fitting, Application Marine, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size Not Applicable, Fitting Side B Copper Tube Size Not Applicable, Fitting Material Stainless Steel, Fitting Side A Pipe Size 2 1/2 in, Fitting Side B Pipe Size 2 1/2 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape 45 Degrees Elbow, Fitting Side A Tube Outer Diameter 2 1/2 in, Fitting Side B Tube Outer Diameter 2 1/2 in
