  6. Elbow, SS, Press-fit 4 in, FTG 4 in

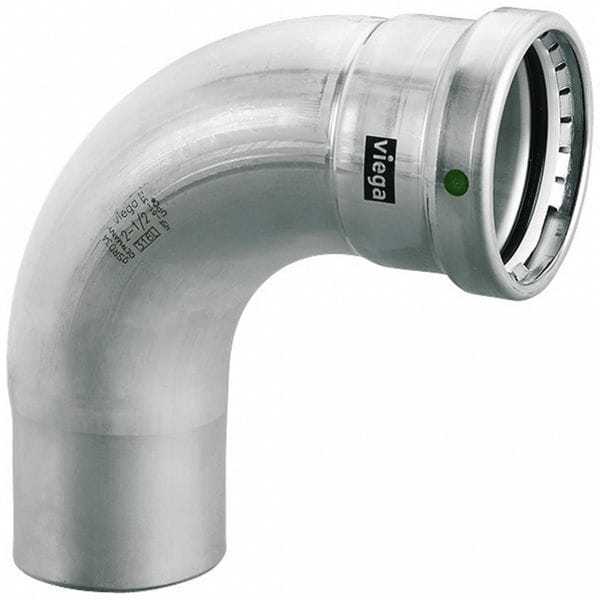

Viega Elbow, SS, Press-fit 4 in, FTG 4 in 90525 - main

Elbow, SS, Press-fit 4 in, FTG 4 in

  • Mfr # 90525

  • Zoro # G806427770

product price:  $564.99
/ea
Free Shipping & Returns

Key Features

Specific Fitting Shape
90 Degrees Street Elbow
Standards
ABS Type approval ASME B31.1, ANSI 372FM Class 1920, NSF/ANSI 61, ANSI/CAN/UL 213, ASME B301, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RNSF
Overall Length
9 5/32 in
Fitting Side A Tube Outer Diameter
4 in
Fitting Side A Pipe Size
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
90525
Zoro #
G806427770
UPC #
691514905259
Country of Origin
Germany

Dimensions

Overall Length
9 5/32 in
Fitting Side A Tube Outer Diameter
4 in
Fitting Side A Pipe Size
4 in
Fitting Side B Pipe Size
4 in
Fitting Side 2 Pipe Size
4 in
Fitting Side 1 Pipe Size
4 in

Details

Item
Crimp Elbow Fitting
Specific Fitting Shape
90 Degrees Street Elbow
Standards
ABS Type approval ASME B31.1, ANSI 372FM Class 1920, NSF/ANSI 61, ANSI/CAN/UL 213, ASME B301, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RNSF
Fitting Material
Stainless Steel
Fitting Side B Connection Type
FTG
Fitting Side A Connection Type
Press-Fit
Application
Marine
O-Ring Material
EPDM
Material Grade
316
Maximum Operating Temperature
250 Degrees F
Compatible Tube Material
Stainless Steel
Compatible Tool Brand
Milwaukee, Ridgid
Maximum Operating Pressure
200 psi
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Color
Silver
Minimum Operating Temperature
0 Degrees F
Operating Temperature - Maximum
250 Degrees F
For Media Type
Compressed Air, Potable Water
Operating Temperature - Minimum
0 Degrees F
Fitting Shape
90 Degrees Elbow
Operating Pressure - Maximum
200 psi
Fitting Side 1 Connection Type
Press-fit
Compatible Tube Hardness
Schedule 5 to Schedule 40
Fitting Side 2 Connection Type
FTG

Description

Crimp Elbow Fitting, Application Marine, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size Not Applicable, Fitting Side B Copper Tube Size Not Applicable, Fitting Material Stainless Steel, Fitting Side A Pipe Size 4 in, Fitting Side B Pipe Size 4 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow, Fitting Side A Tube Outer Diameter 4 in, Overall Length 9 5/32 in
