  10. /
  11. Viega MegaPressG 90 elbow, 1/2" x 1/2"
Shop All Press-Fit Tube Fittings
Viega

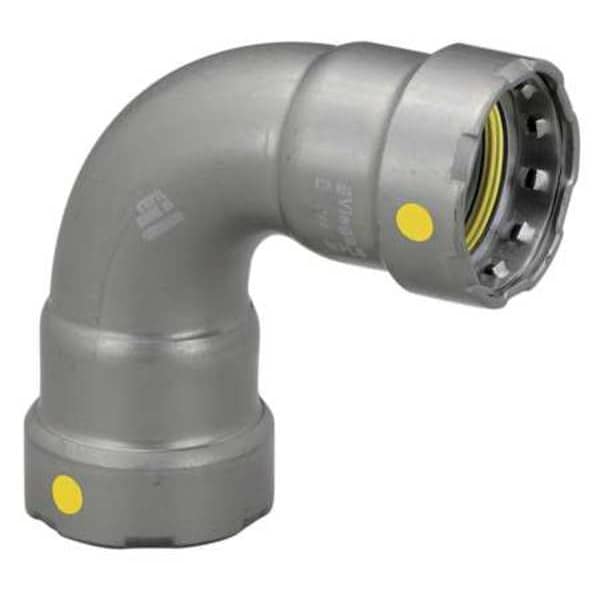

Viega MegaPressG 90 elbow, 1/2" x 1/2"

product price: $13.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Carbon Steel
  • Specific Fitting Shape 90 Degrees Elbow
  • Fitting Connection Type Press x Press
  • Tube Size 1/2 in
  • Pipe Size - Pipe Fitting 1/2 in x 1/2 in
See all product information

Product Information

Dimensions

Tube Size 1/2 in
Pipe Size - Pipe Fitting 1/2 in x 1/2 in
Pipe Size (Fittings) 1/2" x 1/2"
Fitting Side A Pipe Size 1/2 in
Fitting Side B Pipe Size 1/2 in

Details

Item 90 Degree Elbow
Tube Fitting Material Carbon Steel
Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type Press x Press
Pipe Fitting Connection Type Press x Press
Temp. Range -40 Degrees to 180 Degrees F
Basic Pipe Fitting Shape Elbow
Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO ANSI LC4/CSA 6.32, ICC-ES PMG-1036
Specific Pipe Fitting Shape 90 Degrees Elbow
Max. Pressure 125 psi
Basic Pipe Fitting Material Metal
Standards ABS Type Approval, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
Fitting Material Carbon Steel
Application Air, Fuel, Natural Gas
Maximum Operating Pressure 125 psi
Maximum Operating Temperature 180 Degrees F
Minimum Operating Temperature 40 Degrees F
O-Ring Material HNBR
Finish/Coating Zinc Nickel-Plated
Resistance Properties Chemical-Resistant, Heat-Resistant, Oil-Resistant
Fitting Side B Connection Type Press-Fit
Fitting Side A Connection Type Press-Fit

Description

90 Degree Elbow, Application Air, Fuel, Natural Gas, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1/2 in, Fitting Side B Pipe Size 1/2 in, O-Ring Material HNBR, Specific Fitting Shape 90 Degrees Elbow, Finish/Coating Zinc Nickel-Plated, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 180 Degrees F
