Shop All Press-Fit Tube Fittings
Viega

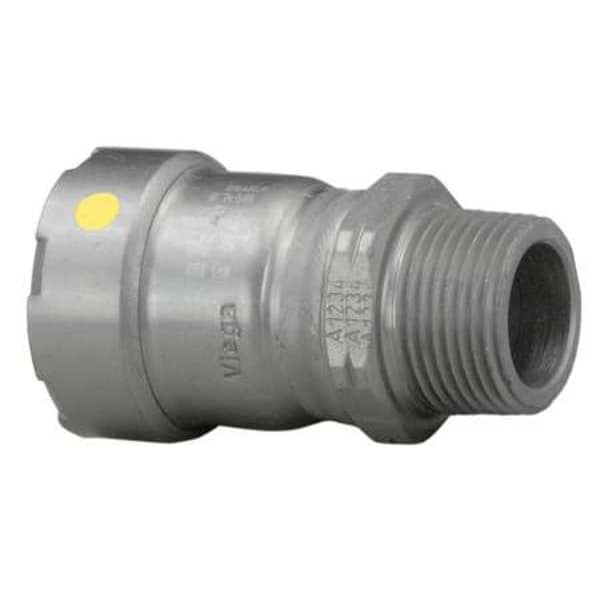

Viega MegaPressG adapter, 3/4" x 3/4"

product price: $20.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Carbon Steel
  • Specific Fitting Shape Straight Adapter
  • Fitting Connection Type Press x Male Pipe Thread
  • Tube Size 3/4 in
  • Pipe Size - Pipe Fitting 3/4 in x 3/4 in
See all product information

Product Information

Dimensions

Tube Size 3/4 in
Pipe Size - Pipe Fitting 3/4 in x 3/4 in
Pipe Size (Fittings) 3/4" x 3/4"
Fitting Side B Pipe Size 3/4 in
Overall Length 2 21/32 in
Fitting Side A Pipe Size 3/4 in

Details

Item Adapter
Tube Fitting Material Carbon Steel
Specific Fitting Shape Straight Adapter
Fitting Connection Type Press x Male Pipe Thread
Basic Pipe Fitting Material Metal
Pipe Fitting Connection Type Press x Male Pipe Thread
Specific Pipe Fitting Shape Adapter
Max. Pressure 125 psi
Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO ANSI LC4/CSA 6.32, ICC-ES PMG-1036
Standards ABS Type Approval, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
Basic Pipe Fitting Shape Adapter
Temp. Range -40 Degrees to 180 Degrees F
Fitting Side A Connection Type Press-Fit
Maximum Operating Temperature 180 Degrees F
Fitting Material Carbon Steel
O-Ring Material HNBR
Finish/Coating Zinc Nickel-Plated
Maximum Operating Pressure 125 psi
Minimum Operating Temperature 40 Degrees F
Fitting Side B Connection Type MNPT
Resistance Properties Chemical-Resistant, Heat-Resistant, Oil-Resistant
Application Air, Fuel, Natural Gas

Description

Adapter, Application Air, Fuel, Natural Gas, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type MNPT, Fitting Material Carbon Steel, Fitting Side A Pipe Size 3/4 in, Fitting Side B Pipe Size 3/4 in, O-Ring Material HNBR, Specific Fitting Shape Straight Adapter, Finish/Coating Zinc Nickel-Plated, Overall Length 2 21/32 in, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 180 Degrees F
