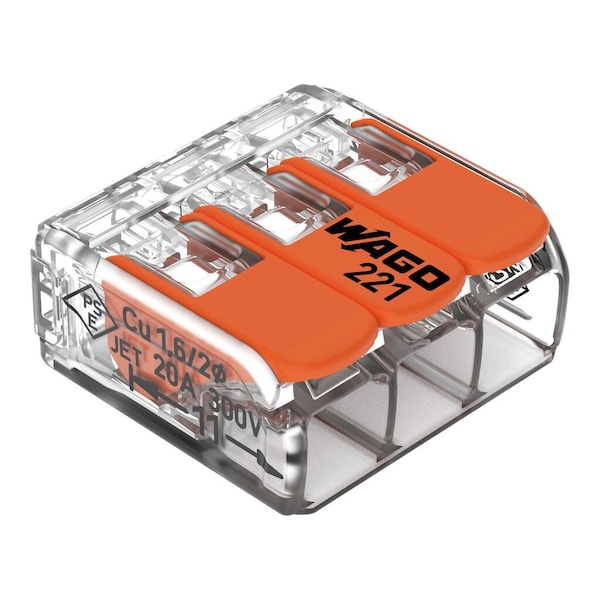

Push-In Wire Connector, 12 AWG Max, 3 Port, Orange, Polycarbonate Insulation, 600 V, 32 A
Mfr # 221-413
Zoro # G507146222
product price: $1.39
/eaKey Features
Type
Push-In
Color
Orange
Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Insulation Material
Polycarbonate
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
221-413
Zoro #
G507146222
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Strip Length
7/16 in
For Minimum Wire Size - Solid
24 AWG
For Minimum Wire Size - Stranded
24 AWG
For Maximum Wire Size - Solid
12 AWG
Overall Height
0.33 in
Overall Length
0.73 in
For Maximum Wire Size - Stranded
12 AWG
Overall Width
0.74 in
Details
Item
Push-In Wire Connector
Type
Push-In
Color
Orange
Insulation Material
Polycarbonate
Maximum Voltage
600 V
Current
32 A
Maximum Operating Temperature
221 Degrees F
Number of Ports
3
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Standards
ABS, CCA, DNV GL, ENEC, LR, UL
For Conductor Material
Copper
Material
Copper
Finish
Tin Plated
Description
Push-In Wire Connector, Color Orange, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.33 in, Overall Length 0.73 in, Overall Width 0.74 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards ABS, CCA, DNV GL, ENEC, LR, UL, Contact Finish Tin, Contact Material Copper
