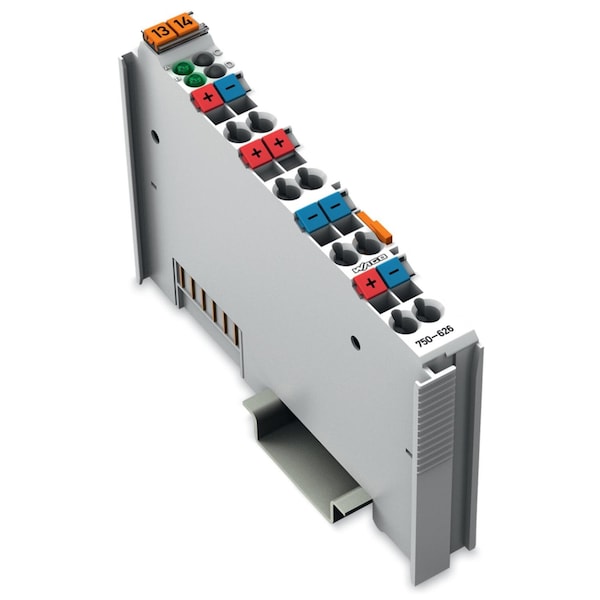

Supply Filter Module

This is a supply filter module from the WAGO I/O System 750 designed to stabilize and protect the 24 V DC system power supply. It filters voltage fluctuations and provides surge suppression for reliable operation of I/O modules in industrial automation systems. Specifications: -Model: 750-626 -Type: Supply filter module (system & field power) -System: WAGO I/O System 750/753 -Function: Filtering and surge protection for 24 V DC supply -Supply Voltage: 24 V DC (±25...+30%) -Field Supply: 24 V DC via power jumper contacts -Current Carrying Capacity: Up to 10 A (power contacts) -System Current: Max -1.5 A -Outgoing Power Contacts: 2 -Protection Function: Surge suppression + voltage filtering -Isolation: 500 V (system/field isolation) -Mounting: DIN rail (35 mm) -Connection Type: CAGE CLAMP spring terminals -Housing Material: Polycarbonate / Polyamide 6.6 -Protection Class: IP20 -Operating Temperature: 0 deg C to 55 deg C -Indicators: LED status display (system power + field power)
