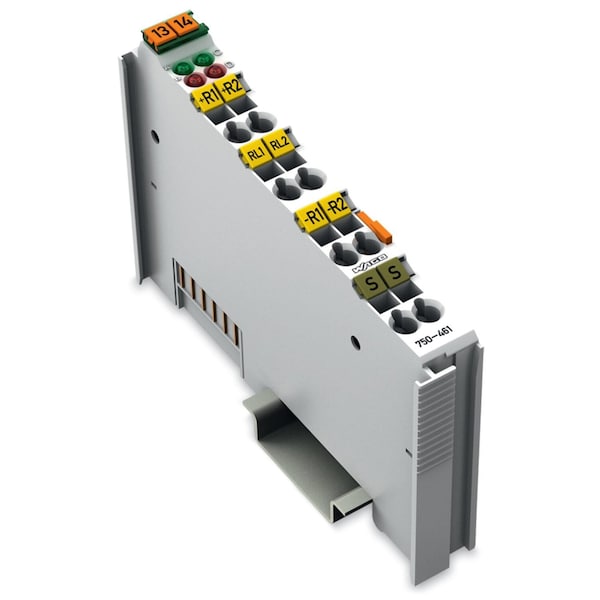

Analog Input Module
Mfr # 750-461
Zoro # G523561818
product price:Â
$
402.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 750-461
- Zoro #
- G523561818
- UPC #
- -
- Country of Origin
- Germany
Description
This is a 2-channel RTD analog input module from the WAGO I/O System 750 designed for direct connection of Pt100 / Pt1000 resistance temperature sensors. It automatically linearizes temperature values for accurate industrial measurement in automation systems. Specifications: -Model: 750-461 -Type: Analog input module (RTD / resistance temperature input) -System: WAGO I/O System 750/753 -Function: 2-channel temperature measurement (Pt100 / Pt1000 sensors) -Input Signal Type: Resistance measurement (RTD) -Sensor Types Supported: Pt100, Pt1000 (2-wire / 3-wire connection) -Measurement Range: -200 deg C to +850 deg C -Resolution: 0.1 deg C (over full range) -Conversion Time: -320 ms per channel -Response Time: up to 4 s -Measuring Current: approx. 0.5 mA -Input Channels: 2 -Data Format: 2 x 16-bit process data -Isolation: 500 V (system/field) -Supply Voltage: 5 V DC (via backplane system) -Current Consumption: -80 mA (system side) -Mounting: DIN rail (35 mm) -Connection Type: CAGE CLAMP spring terminals -Housing Material: Polycarbonate (PC) -Protection Class: IP20 -Operating Temperature: 0 deg C to 55 deg C
Restrictions
This item has been restricted from sale in the following states:
CA
