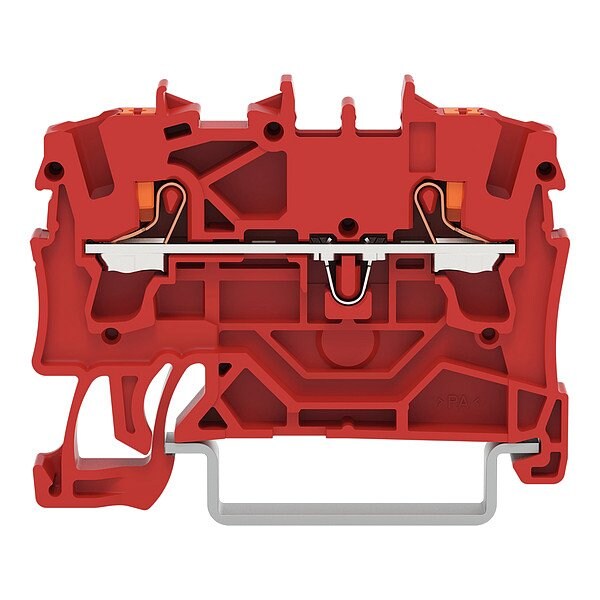

Terminal Block, 1.9" L, 1.55" W, 800V, Red

  • Mfr # 2202-1203

  • Zoro # G822935754

product price:  $1.95
/ea

Key Features

Number of Connections
2
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Strip Length
15/32 in
Terminal Block Type
Pass-Through
UL 94 Flammability Rating
V-0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-1203
Zoro #
G822935754
UPC #
-
Country of Origin
Germany

Dimensions

Strip Length
15/32 in
Wire Rope Length
1.9 in
For Channel Rail Size
35 mm
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
Overall Width
1.55 in
For Minimum Wire Size
22 AWG
Overall Length
1.9 in

Details

Number of Connections
2
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Terminal Block Type
Pass-Through
UL 94 Flammability Rating
V-0
Standards
ABS 24-0095985-PDA, Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, CSA C22.2 70173745, DNV GL TAE00003JT, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), LR 19/20050, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
For Conductor Material
Copper
Housing Material
Polyamide 66
Housing Color
Red
Number of Tiers
1
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Series
2202
Minimum Operating Temperature
-60 Degrees C
Number of Poles
1
Circuit Protection Type
None
Current
24 A
Maximum Voltage
800 V
Item
Terminal Block
Connection Type
Push-In
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Red, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 1.9 in, Overall Width 1.55 in
