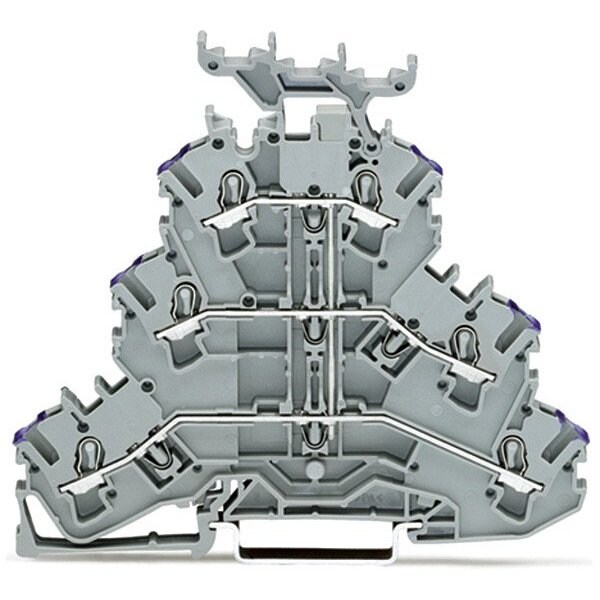

Terminal Block, 3.67" L, 500V, Gray

  • Mfr # 2002-3238

  • Zoro # G022935776

product price:  $11.19
/ea

Key Features

For Channel Rail Size
35 mm
Terminal Block Type
Pass-Through
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Current
24 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-3238
Zoro #
G022935776
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Overall Depth
0.2 in
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
Wire Rope Length
3.67 in
For Maximum Wire Size
12 AWG
Overall Length
3.67 in

Details

Terminal Block Type
Pass-Through
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Current
24 A
Special Features
5 Jumper Slots, Front-Entry Wiring
Circuit Protection Type
None
For Conductor Type
Solid, Stranded
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079 TUV 12.1307 U, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Item
Terminal Block
For Conductor Material
Copper
Housing Color
Gray
UL 94 Flammability Rating
V-0
Connection Type
Push-In
Number of Connections
6
Housing Material
Polyamide 66
Number of Poles
1
Maximum Voltage
500 V
Number of Tiers
3
Minimum Operating Temperature
-60 Degrees C
Series
2002

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 3, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.67 in
