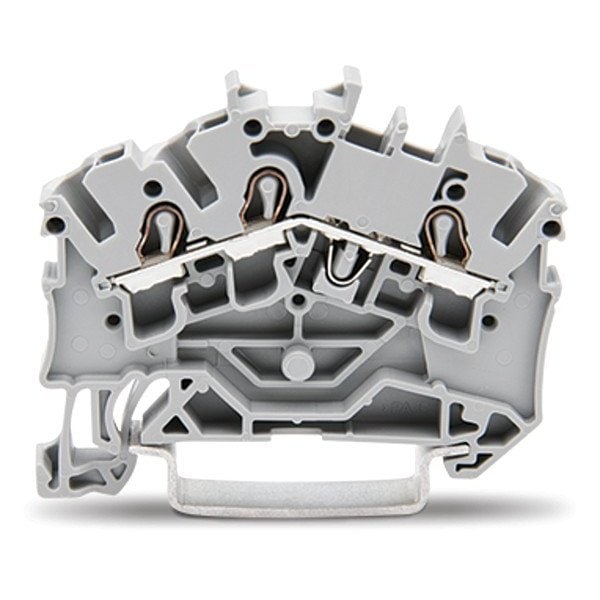

Terminal Block, 2.07" L, 1.79" W, 800V, Gray

  • Mfr # 2002-6301

  • Zoro # G522935689

product price:  $2.65
/ea

Key Features

For Conductor Type
Solid, Stranded
For Minimum Wire Size
22 AWG
UL 94 Flammability Rating
V-0
Wire Rope Length
2.07 in
Circuit Protection Type
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-6301
Zoro #
G522935689
UPC #
-
Country of Origin
China

Dimensions

For Minimum Wire Size
22 AWG
Wire Rope Length
2.07 in
For Maximum Wire Size
12 AWG
Overall Width
1.79 in
Strip Length
15/32 in
Overall Depth
0.2 in
For Channel Rail Size
35 mm
Overall Length
2.07 in

Details

For Conductor Type
Solid, Stranded
UL 94 Flammability Rating
V-0
Circuit Protection Type
None
Special Features
2 Jumper Slots, Front-Entry Wiring
Item
Terminal Block
Number of Tiers
1
Number of Connections
3
Connection Type
Push-In
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Series
2002
Current
24 A
Housing Color
Gray
Maximum Voltage
800 V
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079 IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb), IEC 60079 TUV 12.1307 U, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Minimum Operating Temperature
-60 Degrees C
For Conductor Material
Copper
Terminal Block Type
Pass-Through
Number of Poles
1
Housing Material
Polyamide 66

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.07 in, Overall Width 1.79 in
