Shop WAGO

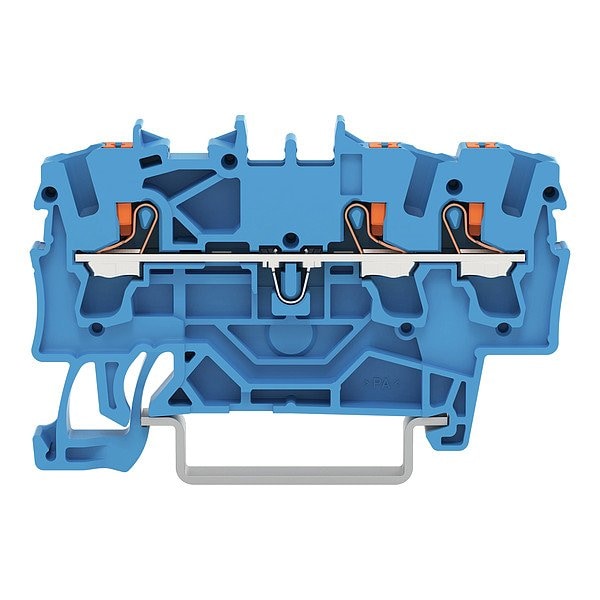

Terminal Block, 2.33" L, 1.55" W, 800V, Blue

  • Mfr # 2202-1304

  • Zoro # G922935364

product price:  $2.25
/ea

Key Features

Number of Tiers
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Number of Poles
1
Maximum Voltage
800 V
Overall Width
1.55 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-1304
Zoro #
G922935364
UPC #
-
Country of Origin
Germany

Dimensions

Overall Width
1.55 in
For Minimum Wire Size
22 AWG
Wire Rope Length
2.33 in
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
For Channel Rail Size
35 mm
Strip Length
15/32 in
Overall Length
2.33 in

Details

Number of Tiers
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Number of Poles
1
Maximum Voltage
800 V
For Conductor Material
Copper
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Connection Type
Push-In
Current
24 A
Housing Color
Blue
Circuit Protection Type
None
Housing Material
Polyamide 66
Item
Terminal Block
Terminal Block Type
Pass-Through
Number of Connections
3
Series
2202
Special Features
2 Jumper Slots, Front-Entry Wiring
For Conductor Type
Solid, Stranded
Standards
ABS 24-0095985-PDA, Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, CSA C22.2 70173745, DEKRA EN 60947 71-147887, DNV GL TAE00003JT, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, LR 19/20050, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Minimum Operating Temperature
-60 Degrees C
UL 94 Flammability Rating
V-0

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.33 in, Overall Width 1.55 in
