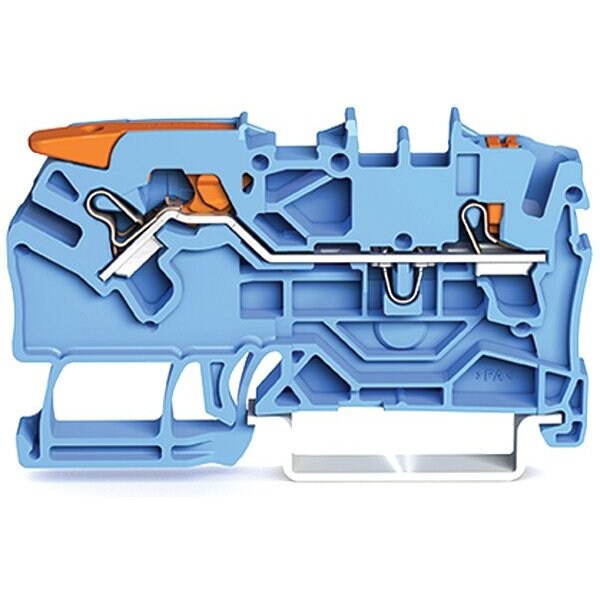

Terminal Block, 2.42" L, 1.55" W, 800V, Blue

  • Mfr # 2102-5204

  • Zoro # G122935577

product price:  $2.25
/ea

Key Features

Number of Poles
1
Connection Type
Push-In
For Maximum Wire Size
12 AWG
Standards
ABS 24-0095985-PDA, AEX UL 60079 20181105-E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079-0 PTB 18 ATEX 1010 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV DNV GLTAE00003JT, CCA EN 60947 NTR NL 7670, CCC GB/T 3836.3 2020312313000163 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 70175030, IEC 60079-0 IECEx PTB 18.0017U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-102882, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, TUV 19.0818 U, UKCA, UL 1059, UL File No. E45172
UL 94 Flammability Rating
V-0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2102-5204
Zoro #
G122935577
UPC #
-
Country of Origin
Germany

Dimensions

For Maximum Wire Size
12 AWG
Overall Width
1.55 in
Overall Depth
0.2 in
Strip Length
15/32 in
Wire Rope Length
2.42 in
For Channel Rail Size
35 mm
For Minimum Wire Size
22 AWG
Overall Length
2.42 in

Details

Number of Poles
1
Connection Type
Push-In
Standards
ABS 24-0095985-PDA, AEX UL 60079 20181105-E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079-0 PTB 18 ATEX 1010 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV DNV GLTAE00003JT, CCA EN 60947 NTR NL 7670, CCC GB/T 3836.3 2020312313000163 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 70175030, IEC 60079-0 IECEx PTB 18.0017U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-102882, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, TUV 19.0818 U, UKCA, UL 1059, UL File No. E45172
UL 94 Flammability Rating
V-0
Circuit Protection Type
None
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Minimum Operating Temperature
-60 Degrees C
Number of Tiers
1
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Maximum Voltage
800 V
Number of Connections
2
Terminal Block Type
Pass-Through
Current
24 A
Housing Color
Blue
Housing Material
Polyamide 66
Series
2102
Item
Terminal Block
For Conductor Material
Copper

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.42 in, Overall Width 1.55 in
