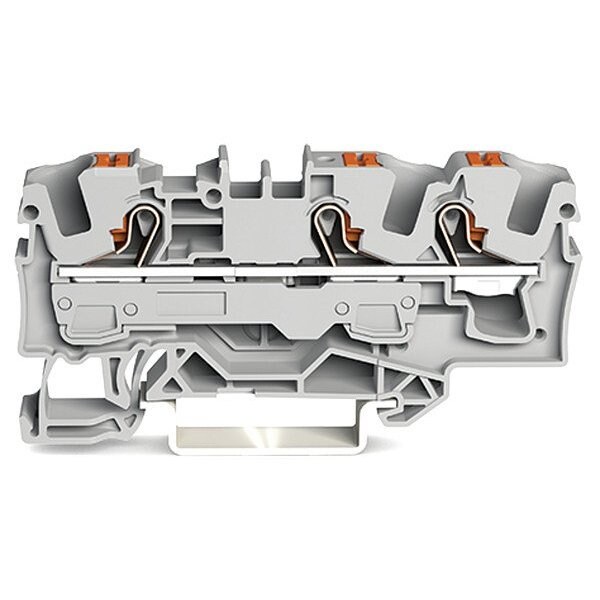

Terminal Block, 2.88" L, 1.55" W, 800V, Gray

  • Mfr # 2206-1301

  • Zoro # G422935703

product price:  $4.99
/ea

Key Features

Connection Type
Push-In
Maximum Voltage
800 V
For Channel Rail Size
35 mm
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2206-1301
Zoro #
G422935703
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Overall Width
1.55 in
Overall Depth
0.29 in
Strip Length
19/32 in
For Maximum Wire Size
8 AWG
For Minimum Wire Size
20 AWG
Wire Rope Length
2.88 in
Overall Length
2.88 in

Details

Connection Type
Push-In
Maximum Voltage
800 V
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Minimum Operating Temperature
-60 Degrees C
For Conductor Material
Copper
Current
41 A
Circuit Protection Type
None
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
Terminal Block Type
Pass-Through
UL 94 Flammability Rating
V-0
Housing Color
Gray
Number of Poles
1
Standards
ABS 24-0095985-PDA, AEX UL 60079 E 185892 (AEx eb IIC, Ex eb IIC), ATEX IEC 60079-0 PTB 18 ATEX 1007 U (II 2 Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCC EN 60947 NTR NL-7957, CCC GB/T 3836.3 2020312313000171 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 70175034, DNV GL TAE00003JTLR 19/20050, IEC 60079 IECEx PTB 18.0014U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-125861, RoHS Compliant, TUV 19.0087 U, UKCA, UL C22.2 No. 158 E45172
Housing Material
Polyamide 66
Item
Terminal Block
Number of Connections
3
Number of Tiers
1
Series
2206

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 41 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 2.88 in, Overall Width 1.55 in
