Shop WAGO

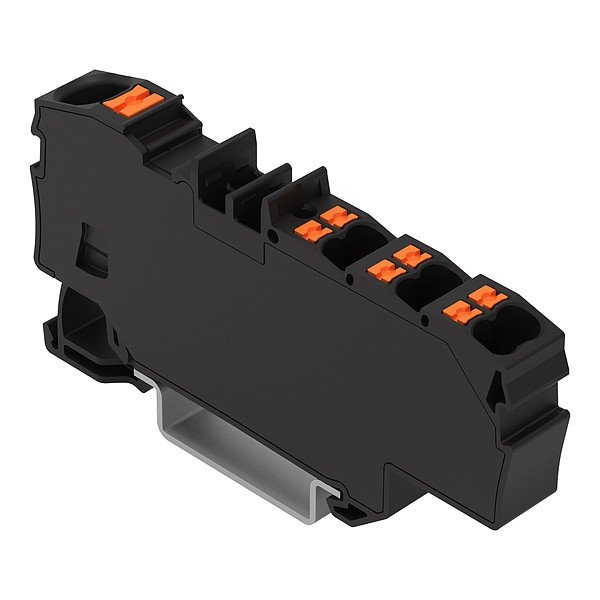

Terminal Block, 2.91" L, 1.3" W, 800V, Black

  • Mfr # 2206-8035

  • Zoro # G522935573

product price:  $11.89
/ea

Key Features

Standards
AEX UL 60079 E 185892 (AEx eb IIC, Ex eb IIC), CCA EN 60947 NTR NL-7957, CCC GB/T 3836.3 2020312313000171, CSA C22.2 70175034, IEC 60079 TUV 19.0087 U, KEMA/KEUR EN 60947 71-125861, RoHS Compliant, UL C22.2 No. 158 E45172
Minimum Operating Temperature
-60 Degrees C
Load Side Connection Type
Lug
Number of Poles
1
For Line Copper Wire Size - Minimum
20 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2206-8035
Zoro #
G522935573
UPC #
-
Country of Origin
Germany

Dimensions

For Line Copper Wire Size - Minimum
20 AWG
For Line Copper Wire Size - Maximum
8 AWG
For Load Copper Wire Size - Minimum
22 AWG
Overall Width
1.3 in
Wire Rope Length
2.91 in
For Load Copper Wire Size - Maximum
14 AWG
Overall Depth
0.35 in
Overall Length
2.91 in

Details

Standards
AEX UL 60079 E 185892 (AEx eb IIC, Ex eb IIC), CCA EN 60947 NTR NL-7957, CCC GB/T 3836.3 2020312313000171, CSA C22.2 70175034, IEC 60079 TUV 19.0087 U, KEMA/KEUR EN 60947 71-125861, RoHS Compliant, UL C22.2 No. 158 E45172
Minimum Operating Temperature
-60 Degrees C
Item
Terminal Block
Load Side Connection Type
Lug
Number of Poles
1
Housing Color
Black
For Conductor Material
Copper
Housing Material
Polyamide 66
Series
2206
Load Connections/Pole
6
Special Features
Front-Entry Wiring, Push-Button Actuation
Line Connections/Pole
1
UL 94 Flammability Rating
V-0
Primary Wire Range
14 to 8 AWG (Solid Conductor Push-In Termination ), 16 to 10 AWG (Fine-Stranded Conductor with Ferrule Push-In Termination), 20 to 10 AWG (Fine-Stranded Conductor with Insulated Ferrule ), 20 to 8 AWG (Fine-Stranded Conductor), 20 to 8 AWG (Solid Conductor)
Secondary Wire Range
18 to 14 AWG (Solid Conductor Push-In Termination), 18 to 16 AWG (Fine-Stranded Conductor with Ferrule Push-In Termination), 22 to 14 AWG (Fine-Stranded Conductor), 22 to 14 AWG (Solid Conductor), 22 to 16 AWG (Fine-Stranded Conductor with Insulated Ferrule )
Maximum Current - Copper Conductor
41 A
Maximum Voltage
800 V
Line Side Connection Type
Lug

Description

Terminal Block, For Conductor Material Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 20 AWG, For Line Copper Wire Size - Maximum 8 AWG, Load Connections/Pole 6, For Load Copper Wire Size - Minimum 22 AWG, For Load Copper Wire Size - Maximum 14 AWG, Maximum Current - Copper Conductor 41 A, Maximum Voltage 800 V, Mounting Type DIN-Rail, Number of Poles 1, Overall Depth 0.35 in, Overall Length 2.91 in, Overall Width 1.3 in, UL 94 Flammability Rating V-0, Housing Color Black
