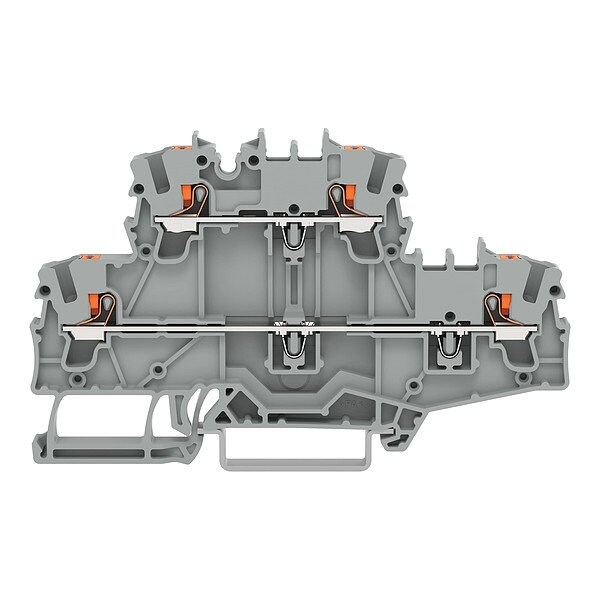

Terminal Block, 3.64" L, 800V, Gray

  • Mfr # 2202-2701

  • Zoro # G722935762

product price:
$
4.39
/ea

Key Features

6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
For Minimum Wire Size
22 AWG
Housing Material
Polyamide 66
For Conductor Type
Solid, Stranded
For Channel Rail Size
35 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-2701
Zoro #
G722935762
UPC #
-
Country of Origin
Germany

Dimensions

For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
Wire Rope Length
3.64 in
Overall Depth
0.2 in
Strip Length
15/32 in
For Maximum Wire Size
12 AWG
Overall Length
3.64 in

Details

6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Item
Terminal Block
Housing Material
Polyamide 66
For Conductor Type
Solid, Stranded
Minimum Operating Temperature
-60 Degrees C
Special Features
2 Jumper Slots, Front-Entry Wiring
Current
24 A
Maximum Voltage
800 V
Standards
Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, DEKRA EN 60947 71-147887, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Circuit Protection Type
None
UL 94 Flammability Rating
V-0
For Conductor Material
Copper
Housing Color
Gray
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Terminal Block Type
Pass-Through
Number of Connections
4
Series
2202
Number of Tiers
2
Connection Type
Push-In
Number of Poles
1

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.64 in
