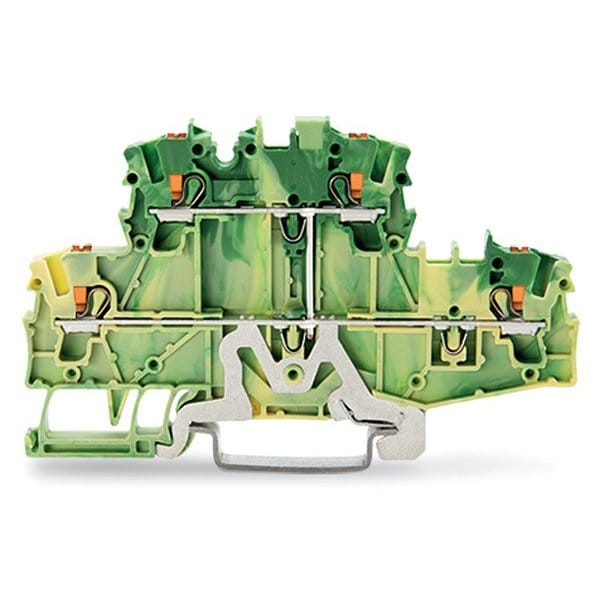

Terminal Block, 3.64" L, Green; Yellow

  • Mfr # 2202-2707

  • Zoro # G622935770

product price:  $11.35
/ea

Key Features

Standards
Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, DEKRA EN 60947 71-147887, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Housing Material
Polyamide 66
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
For Minimum Wire Size
22 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-2707
Zoro #
G622935770
UPC #
-
Country of Origin
Germany

Dimensions

For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
Wire Rope Length
3.64 in
Strip Length
15/32 in
Overall Length
3.64 in

Details

Standards
Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, DEKRA EN 60947 71-147887, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Housing Material
Polyamide 66
Item
Terminal Block
Number of Tiers
2
Circuit Protection Type
None
Connection Type
Push-In
Housing Color
Green, Yellow
Series
2202
Terminal Block Type
Grounding
For Conductor Material
Copper
Special Features
2 Jumper Slots, Front-Entry Wiring
Number of Connections
4
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
UL 94 Flammability Rating
V-0
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Minimum Operating Temperature
-60 Degrees C
Number of Poles
1
For Conductor Type
Solid, Stranded

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current Not Applicable, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.64 in
