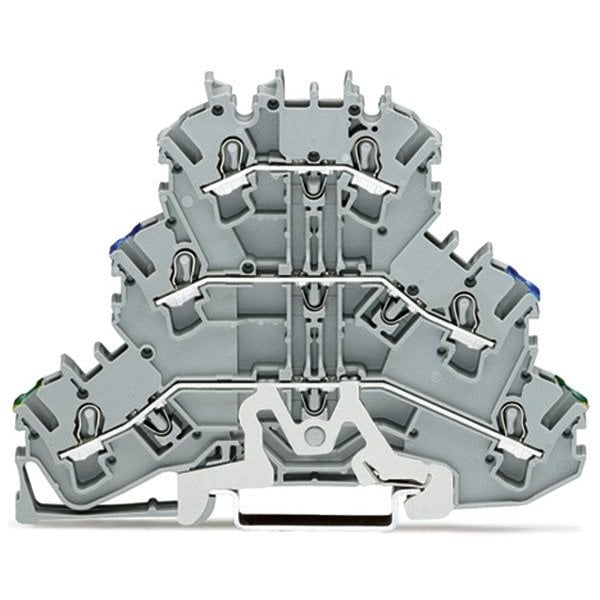

Terminal Block, 3.67" L, 500V, Gray

  • Mfr # 2002-3217

  • Zoro # G822935419

product price:  $11.49
/ea

Key Features

For Conductor Material
Copper
Number of Tiers
3
Maximum Voltage
500 V
For Channel Rail Size
35 mm
Overall Depth
0.2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-3217
Zoro #
G822935419
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Overall Depth
0.2 in
For Maximum Wire Size
12 AWG
For Minimum Wire Size
22 AWG
Wire Rope Length
3.67 in
Strip Length
15/32 in
Overall Length
3.67 in

Details

For Conductor Material
Copper
Number of Tiers
3
Maximum Voltage
500 V
Housing Color
Gray
Housing Material
Polyamide 66
Number of Poles
1
Special Features
6 Jumper Slots, Front-Entry Wiring
Number of Connections
6
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079 IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb), KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Series
2002
Circuit Protection Type
None
Item
Terminal Block
Current
24 A
Terminal Block Type
Grounding, Pass-Through
UL 94 Flammability Rating
V-0
For Conductor Type
Solid, Stranded
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Connection Type
Push-In
Minimum Operating Temperature
-60 Degrees C

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 3, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.67 in
