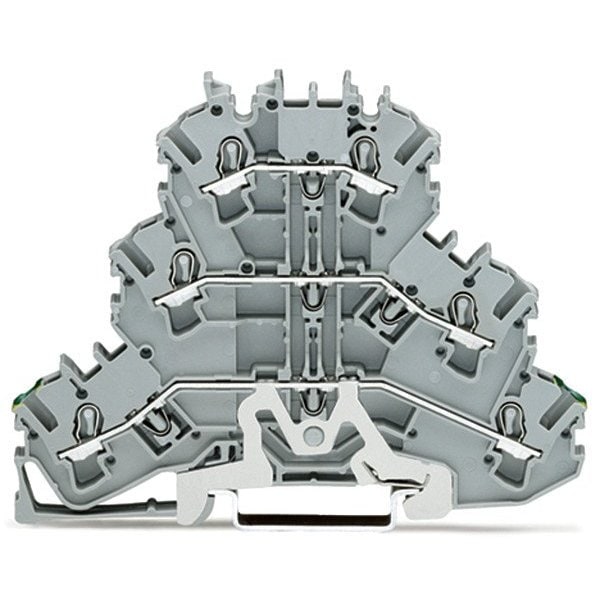

Terminal Block, 3.67" L, 500V, Gray

  • Mfr # 2002-3227

  • Zoro # G622935640

product price:  $11.45
/ea

Key Features

Current
24 A
For Conductor Material
Copper
Number of Connections
6
Overall Depth
0.2 in
Minimum Operating Temperature
-60 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-3227
Zoro #
G622935640
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
0.2 in
For Maximum Wire Size
12 AWG
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
For Channel Rail Size
35 mm
Wire Rope Length
3.67 in

Details

Current
24 A
For Conductor Material
Copper
Number of Connections
6
Minimum Operating Temperature
-60 Degrees C
For Conductor Type
Solid, Stranded
Terminal Block Type
Grounding, Pass-Through
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DNV GL TAE00001V2, IEC 60079 IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb), IEC 60079 TUV 12.1307 U, KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Number of Poles
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Circuit Protection Type
None
Maximum Voltage
500 V
Item
Terminal Block
Connection Type
Push-In
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Housing Color
Gray
Number of Tiers
3
Special Features
6 Jumper Slots, Front-Entry Wiring
UL 94 Flammability Rating
V-0
Series
2002
Housing Material
Polyamide 66

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 3, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.67 in
