  5. Pressure Gauge, 0 to 6 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material

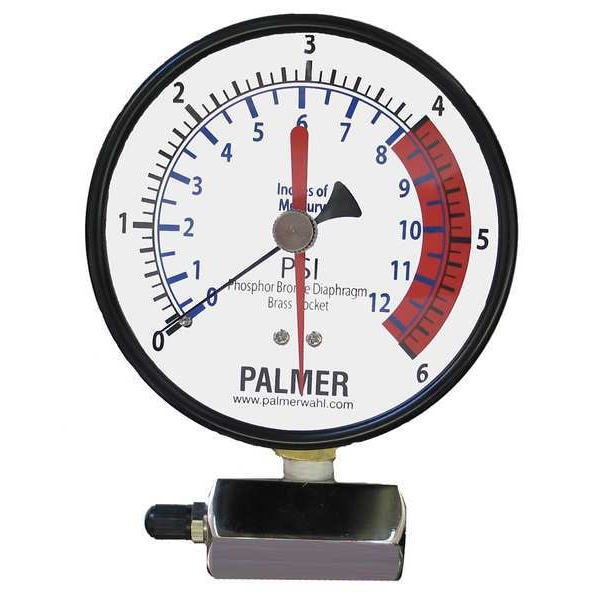

Wahl Pressure Gauge, 0 to 6 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material 40KBDLA6#Hg - main

Pressure Gauge, 0 to 6 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # 40KBDLA6#Hg

  • Zoro # G3727647

product price:  $129.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
3/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
40KBDLA6#Hg
Zoro #
G3727647
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
3/4 in
Dial Size (In.)
4 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
4 in
Case Diameter
4 in
Nominal Dial Diameter
4 in
Gauge Case Diameter
4 in

Details

Item
Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Water Pressure Testing, HVAC/R, Low Pressure, Residential
Gauge Case Material
Steel
Series
40KB
Lens Material
Plastic
Primary Pressure Range
0 to 6
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
Features
Dual Scale (psi/in Hg) Dual Color, Equipped with Set Hand, Heavy Duty Construction Solid Brass Internal Body, Heavy Duty Gear Movement, Phosphor Bronze Diaphragn Internals, Plastic Lens
Gauge Primary Range Smallest Graduation
0.1
Gauge Secondary Range Values
0 to 12
Gauge Application
Test For Leaks in Residential and Commercial Gas, Air and Water Lines, Test For Leaks in Drain, Waste and Vent Lines, Test For Low Pressure Plumbing Lines
Calibration Certificate Included
No
Includes
Schrader Air Valve
Gauge Special Options
Maximum Reading Pointer
Smallest Graduation
1/10th psi or 1/2 in Hg
Case Color
Painted Black
Case Material
Steel
Socket Material
Brass
Standards
ASME
Connection Type
MNPT
Pressure Gauge Type
Gas Line Pressure Test Kit
Secondary Pressure Range
0 to 12
Dial Color
White
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Secondary Pressure Scale Color
Blue
Primary Scale Minor Graduations
0.1
Case Finish
Painted
Scale Type
Dual
Secondary Scale Minor Graduations
0.5
Sensor Material
Bronze
Compatible Process Media
Air, Gas, Water
Secondary Scale Units
in Hg
Sensor Type
Bourdon Tube
Primary Pressure Scale Color
Black
Pointer Characteristics
Set hand, Set Pointer for Leak Off
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-4 Degrees to 160 Degrees F (-20 Degrees to -60 Degrees C)
Accuracy Grade
ASME B40.100 Grade 1A
Process Connection Gender
Female
Operating Temperature Range
-4 Degrees to 160 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Color
Black
Primary Scale Pressure Measurement - Minimum
0 psi
Gauge Case Finish
Painted
Primary Scale Pressure Measurement - Maximum
6 psi
Secondary Scale Vacuum Measurement - Minimum
0 in Hg
Operating Temperature - Maximum
160 Degrees F
Secondary Scale Vacuum Measurement - Maximum
12 in Hg
Secondary Scale Color
Blue
Process Media Temperature - Minimum
-4 Degrees F
Operating Temperature - Minimum
-4 Degrees F

Description

Gas Test Gauge, 4 In, Connection Size 3/4 In NPT, Connection Location Stem Mount Lower, Accuracy (%) 1%, Case Material Steel, Display 4 In (100mm) White Aluminum With Black And Blue Markings, Display Units PSI or Hg, Resolution 1/10th PSI or 1/2 In Hg, Operating Temp. Range (F) (-4F) to 160F, Series 40 KB, Includes Hex Body And Schrader Air Valve, Manufacturers Warranty Length 1 Year, Range 6 PSI-12 In Hg

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
