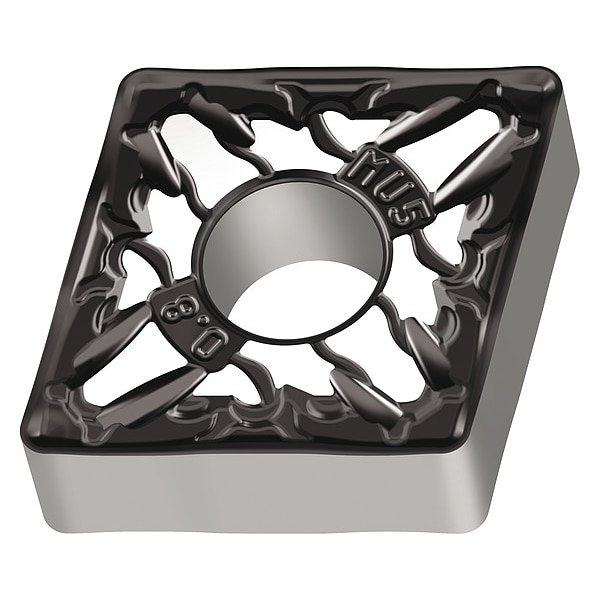

Diamond Turning Insert, 4, CNMG, 3
Mfr # CNMG120412-MU5 WMP20S
Zoro # G2906875
product price: $16.49
/eaSold in multiples of 10 for $164.90
Key Features
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
3
Rake
Negative
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CNMG120412-MU5 WMP20S
Zoro #
G2906875
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
3
Through Hole Inside Dia.
13/64"
Cutting Edge Length
12.90mm
Thickness
3
Details
Item
Diamond Turning Insert
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
CNMG120412-MU5
Cutting Direction
Neutral
Material - Machining
Carbide
Manufacturer Grade
WMP20S
Chip-Breaker Code
MU5
ANSI Code
CNMG433-MU5
Finish - Machining
TiCN+Al2O3+(TiCN)
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Shape
Diamond
Included Angle
80 Degrees
Coating Process
CVD
Description
Diamond Turning Insert, Chip-Breaker Code MU5, Inscribed Circle 1/2 in, TiCN+Al2O3+(TiCN), ANSI Code CNMG433-MU5, Clearance Angle 0 Degrees , Coating Process CVD
