  11. Diamond Turning Insert, Diamond, 2, CCGT, 1, Carbide

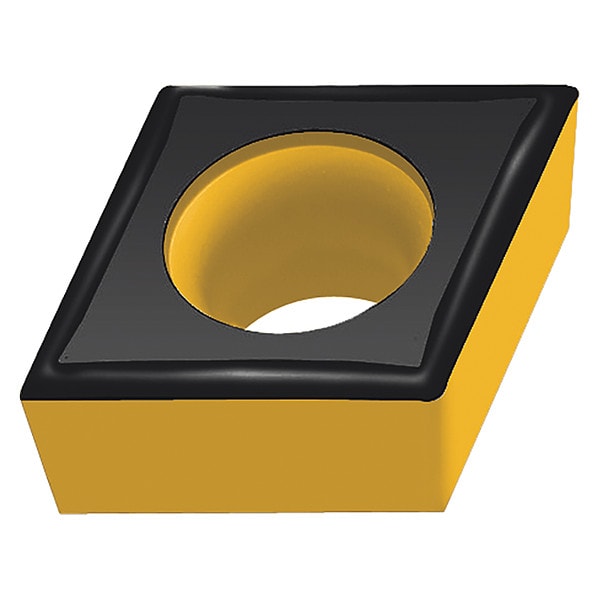

Walter Diamond Turning Insert, Diamond, 2, CCGT, 1, Carbide CCGT060204-PF5 WPP20 - main

Diamond Turning Insert, Diamond, 2, CCGT, 1, Carbide

  • Mfr # CCGT060204-PF5 WPP20

  • Zoro # G8204402

product price: $22.39
/ea
Sold in multiples of 10 for $223.90

Key Features

Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
2
Insert Size
21.51
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCGT060204-PF5 WPP20
Zoro #
G8204402
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
21.51
Corner Radius
1
Nose Radius
0.016"
Insert Thickness
0.094"
Thickness
1.5
Depth of Cut
0.20 to 0.60mm
Cutting Edge Length
6.45mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
WPP20
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
CCGT060204-PF5 WPP20
Cutting Direction
Neutral
Workpiece Compatibility
Steel (P)
Mounting Style
Screw Held
Relief Angle
7 Degrees
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
No
No. of Edges
2
Coating
CVD
For Use With
Toolholders and Boring Bars
Non Ferrous (N) Compatibility
No
ANSI Number
CCGT2(1.5)1-PF5
Cast Iron (K) Compatibility
No
Shape
Rhombic
Material - Machining
Carbide
Measurement System
Fractional Inch
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application ISO Code
P
Primary Material Application
Steel
Cutting Application
Turning
ANSI Code
CCGT2(1.5)1-PF5 WPP20
Clearance Angle
7 Degrees
Number of Cutting Edges
2
Chip-Breaker Code
PF5
Included Angle
80 Degrees
Manufacturer Grade
WPP20
Finish - Machining
TiCN+Al2O3+TiN
Material
Carbide
Application
Finishing
Style
CCGT

Description

Diamond Turning Insert, Chip-Breaker Code PF5, Inscribed Circle 1/4 in, TiCN+Al2O3+TiN, ANSI Code CCGT2(1.5)1-PF5 WPP20, Clearance Angle 7 Degrees
