  11. Diamond Turning Insert, Diamond, 2, CCGT, .5, Carbide

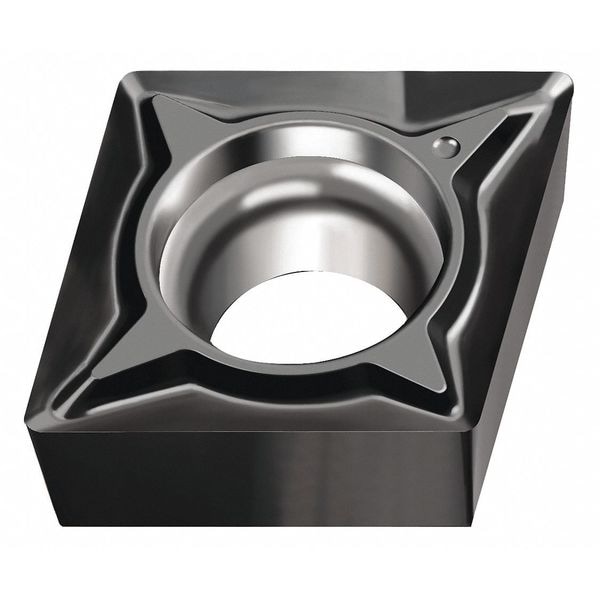

Walter Diamond Turning Insert, Diamond, 2, CCGT, .5, Carbide CCGT060202-FN2 WNN10 - main

Diamond Turning Insert, Diamond, 2, CCGT, .5, Carbide

  • Mfr # CCGT060202-FN2 WNN10

  • Zoro # G4772667

product price: $19.35
/ea
Sold in multiples of 10 for $193.50

Key Features

Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
2
Insert Size
21.50.5
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCGT060202-FN2 WNN10
Zoro #
G4772667
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
21.50.5
Corner Radius
.5
Mounting Hole Dia.
0.110"
Nose Radius
0.008"
Insert Thickness
0.0940"
Thickness
1.5
Cutting Edge Length
6.45mm
Depth of Cut
0.20 to 2.00mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
WNN10
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
CCGT060202-FN2 WNN10
ANSI Number
CCGT2(1.5)0.5-FN2 WNN10
Super Alloy (S) Compatibility
Yes
Cutting Direction
Neutral
Relief Angle
7 Degrees
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
No. of Edges
2
Coating
Uncoated
Mounting Style
Screw
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
No
Hardened (H) Compatibility
No
Clearance Angle
7 Degrees
Primary Material Application ISO Code
N
Material - Machining
Carbide
Finish - Machining
TiAlN
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Number of Cutting Edges
2
ANSI Code
CCGT2(1.5)0.5-FN2 WNN10
Shape
Rhombic
Cutting Application
Turning
Manufacturer Grade
WNN10
Included Angle
80 Degrees
Chip-Breaker Code
FN2
Measurement System
Fractional Inch
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code FN2, Inscribed Circle 1/4 in, TiAlN, ANSI Code CCGT2(1.5)0.5-FN2 WNN10, Clearance Angle 7 Degrees
