  11. Diamond Turning Insert, Diamond, 4, CNGG, .2, Carbide

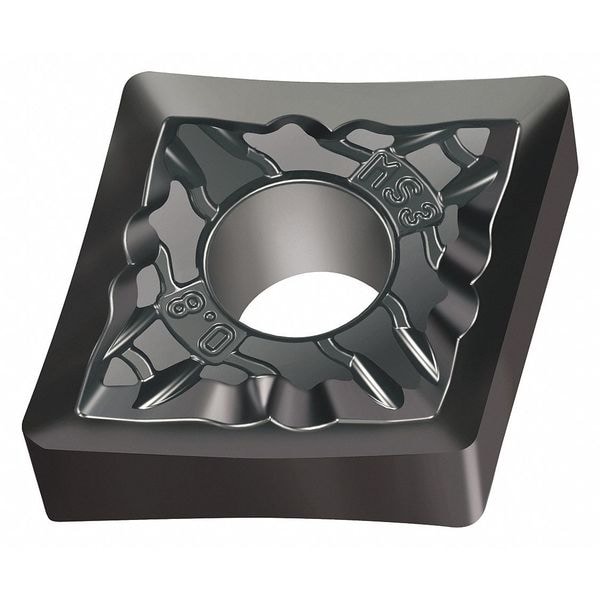

Walter Diamond Turning Insert, Diamond, 4, CNGG, .2, Carbide CNGG120401-MS3 WSM01 - main

Diamond Turning Insert, Diamond, 4, CNGG, .2, Carbide

  • Mfr # CNGG120401-MS3 WSM01

  • Zoro # G4790103

product price: $28.39
/ea
Sold in multiples of 10 for $283.90

Key Features

Insert Shape
Diamond
Insert Style
CNGG
Inscribed Circle
4
Insert Size
430.2
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNGG120401-MS3 WSM01
Zoro #
G4790103
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
430.2
Corner Radius
.2
Nose Radius
0.004"
Insert Thickness
0.1880"
Mounting Hole Dia.
0.203"
Cutting Edge Length
12.90mm
Depth of Cut
0.20 to 2.50mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WSM01
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNGG120401-MS3 WSM01
Super Alloy (S) Compatibility
Yes
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Workpiece Compatibility
Hardened (H), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Hardened (H) Compatibility
Yes
No. of Edges
4
ANSI Number
CNGG4(3)0.2 WSM01
Relief Angle
0 Degrees
Non Ferrous (N) Compatibility
Yes
Coating
Uncoated
Mounting Style
Clamp
Cast Iron (K) Compatibility
No
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Finish - Machining
TiAlN
Manufacturer Grade
WSM01
Insert Holding Type
Straight Hole
ANSI Code
CNGG4(3)0.2-MS3 WSM01
Measurement System
Fractional Inch
Primary Material Application ISO Code
M, S
Cutting Application
Turning
Primary Material Application
Nickel, Stainless Steel, Titanium
Material - Machining
Carbide
Included Angle
80 Degrees
Number of Cutting Edges
4
Shape
Rhombic
Clearance Angle
0 Degrees
Chip-Breaker Code
MS3
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code MS3, Inscribed Circle 1/2 in, TiAlN, ANSI Code CNGG4(3)0.2-MS3 WSM01, Clearance Angle 0 Degrees
