  11. Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

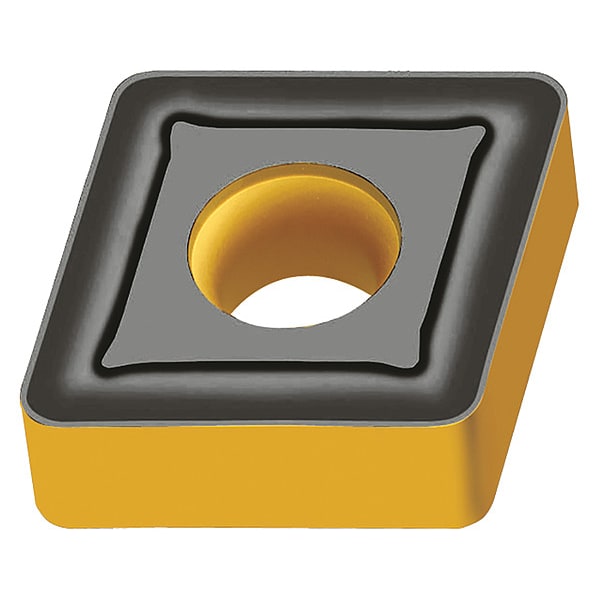

Walter Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG120412-NM5 WAK20 - main

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

  • Mfr # CNMG120412-NM5 WAK20

  • Zoro # G7947843

product price: $17.79
/ea
Sold in multiples of 10 for $177.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG120412-NM5 WAK20
Zoro #
G7947843
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.047"
Insert Thickness
0.1875"
Cutting Edge Length
12.90mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WAK20
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG120412-NM5 WAK20
Stainless (M) Compatibility
No
Mounting Style
Screw Held
Workpiece Compatibility
Cast Iron (K)
Steel (P) Compatibility
No
Coating
CVD
Relief Angle
0 Degrees
ANSI Number
CNMG433-NM5
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
No
No. of Edges
8
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders and Boring Bars
Non Ferrous (N) Compatibility
No
ANSI Code
CNMG433-NM5 WAK20
Primary Material Application
Cast Iron
Cutting Application
Turning
Clearance Angle
0 Degrees
Chip-Breaker Code
NM5
Number of Cutting Edges
8
Shape
Rhombic
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Included Angle
80 Degrees
Material - Machining
Carbide
Manufacturer Grade
WAK20
Finish - Machining
TiCN+Al2O3+TiN
Primary Material Application ISO Code
K
Material
Carbide
Style
CNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code NM5, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN, ANSI Code CNMG433-NM5 WAK20, Clearance Angle 0 Degrees
