  11. Indexable Boring Bar, 262.20mm L, High Speed Steel, 55 Degrees Diamond Insert Shape

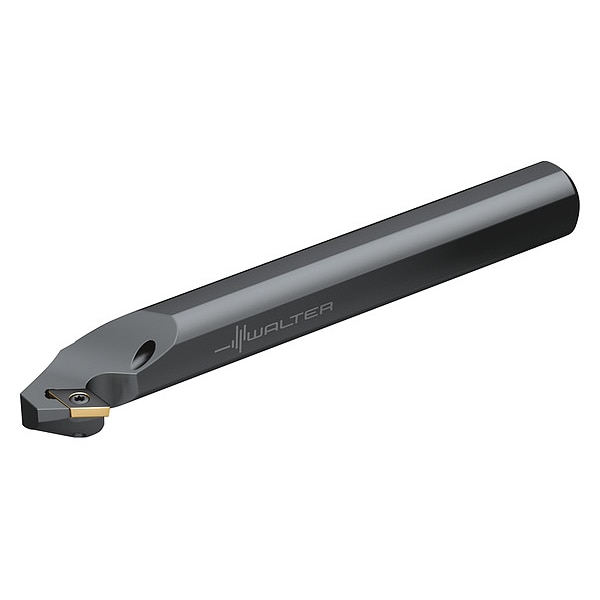

Walter Indexable Boring Bar, 262.20mm L, High Speed Steel, 55 Degrees Diamond Insert Shape A20S-SDUCR07-X - main

Indexable Boring Bar, 262.20mm L, High Speed Steel, 55 Degrees Diamond Insert Shape

  • Mfr # A20S-SDUCR07-X

  • Zoro # G8448431

product price: $260.99
/ea
Free Shipping & Returns

Key Features

Overall Length
262.20mm
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
For Use With
DC0702 Series
Bar Dia.
0.787"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A20S-SDUCR07-X
Zoro #
G8448431
UPC #
-
Country of Origin
Sweden

Dimensions

Overall Length
262.20mm
Bar Dia.
0.787"
Shank Dia.
20.00mm
Insert Size
0702
Min. Bore Dia.
27.00mm
Max. Bore Depth
80.00mm

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
For Use With
DC0702 Series
Left/Right Hand
Left
Type
Coolant Thru
Cutting Edge Type
0 Degrees
Rake
Positive
Style
93 Degrees Boring and Facing
ANSI Number
A20S-SDUCR07-X
Min. Bore
1.063"
Lead Angle
93 Degrees
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Includes
FS1490 Torx Key, FS2061 Clamping Screw
Insert Holding Type
Screw On
Cutting Application
Facing, Interrupted Cuts, Profiling, Turning
Insert Style
DC
Head Material
Steel
Compatible Hardware
FS1490 Torx Key, FS2061 Clamping Screw
Insert Clearance Angle
7 Degrees
Side Cutting Edge Angle
0 Degrees
Center to Cutting Tip
15.00mm
Number of Inserts
1
ISO Number
A20S-SDUCR07-X
Secondary Material Application
Hardened Steel
Approach Angle
93 Degrees
Coolant Fed
Coolant Through
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
K, M, N, P, S
Secondary Material Application ISO Code
H
Number of Coolant Holes
1

Description

Indexable Boring Bar, Insert Shape 55 Degrees Diamond, Overall Length 262.20mm, 93 Degrees , 15.00mm, FS1490 Torx Key, FS2061 Clamping Screw, Coolant Through, Facing, Interrupted Cuts, Profiling, Turning, Right Hand
