Shop WALTER

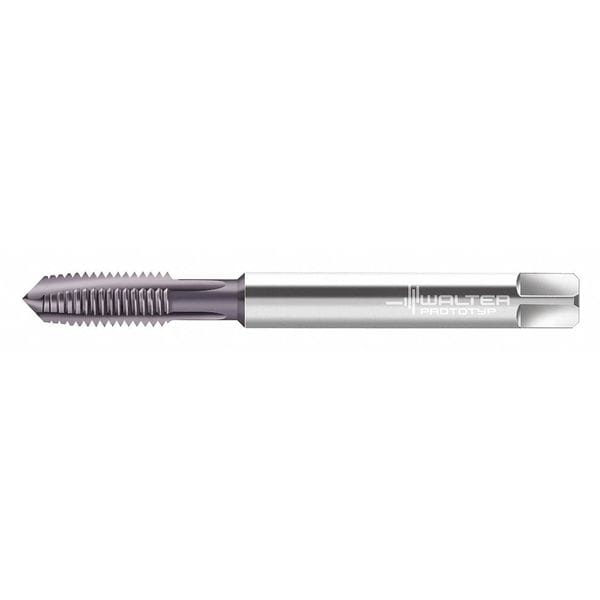

Spiral Point Tap Taper, 2 Flutes

  • Mfr # 2021763-M2

  • Zoro # G2890568

product price:  $62.29
/ea

Key Features

Shank Dia.
3.00mm
Tap Material
High Speed Steel
Tap Dimension Type
Metric
Tap Chamfer
Taper
Tap Size
M2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2021763-M2
Zoro #
G2890568
UPC #
-
Country of Origin
Germany

Dimensions

Shank Dia.
3.00mm
Tap Dimension Type
Metric
Tap Size
M2
Overall Length
46.00mm
Thread Length
8.00mm
Tap Thread Size
M2-0.4
Drill Bit Size
1.60 mm
Thread Size
M2x0.4
Shank Length
37.00 mm
Square Size
2.10 mm
55% Thread Drill Size
#51
75% Thread Drill Size
1.60 mm
65% Thread Drill Size
1.65 mm
Pitch Diameter Limit
6HX
Square Length
2.1 mm
Shank Diameter
2.8 mm
Square Width
2.1 mm

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Chamfer
Taper
Tap Style
Spiral Point
Number of Flutes
2
Tap Finish
AlCrN
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
Prototex TiNi Plus
Spiral Direction
Neutral
Measurement System
Metric
Primary Material Application
Nickel, Titanium
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
S
Thread Standard
Metric
Thread Limit
6HX
Extended Neck
Yes
Thread Pitch
0.40 mm
Shank Type - Machining
Straight
Class of Fit
JIS 2
Helix Angle
0 Degrees
Number of Pieces
1
List Number
2021763
Shank Type
Straight

Description

Spiral Point Tap, Thread Size M2x0.4, Metric, Overall Length 45 mm, High Speed Steel, AlCrN, Right Hand, Thread Length 8 mm, 75 Percent Thread Drill Size 1.60 mm, Class of Fit JIS 2, Number of Flutes 2
