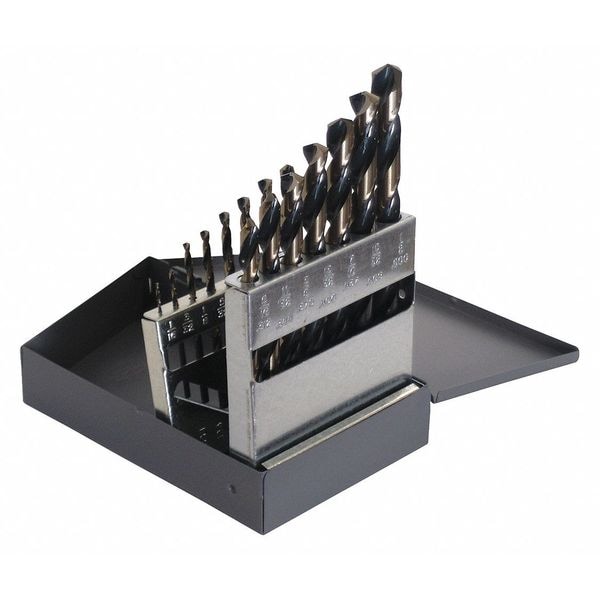

15PC 135 Degree Heavy-Duty Jobber Dril Set Cle-Line 1878 Black & Gold HSS RHS/RHC 1/16-1/2x1/32

  • Mfr # C18124

  • Zoro # G2841218

product price:  $66.99
/ea

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18124
Zoro #
G2841218
UPC #
697334181248
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 1/2 in by 32nds
Sizes Included
1/16",3/32",1/8",5/32",3/16",7/32",1/4",9/32",5/16",11/32",3/8",13/32",7/16",15/32",1/2"
Shank Dia.
1/16 in
Drill Bit Dimension Type
Fractional Inch
Depth x Dia. Ratio
4xD
Depth:Dia. Ratio
4xD
Drill Length Class
Jobber-Length
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Largest Drill Bit Size
1/2 in
Smallest Drill Bit Size
1/16 in
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Wire Rope Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
List Number
1878
Point Type
Split
Standards
ASME B94.11M, DIN 338
Number of Drill Bits
15
Primary Material Application
Aluminum, Cast Iron, Steel
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight with Three Flats
Finish - Machining
Black and Gold
Material - Machining
High Speed Steel
Drill Bit Point Type
Split Point
Measurement System
Fractional Inch
Aircraft Drill
No
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Spiral Direction
Right Hand
Number of Flutes
2
Primary Material Application ISO Code
K, N, P
Material Grade - Machining
Heavy Duty
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

The CLE-LINE C18124 is a jobber-length drill bit set consisting of 15 bits made from high-speed steel designed for use on aluminum, cast iron, and steel (ISO codes K, N, P). The drill bits feature a split point tip with a 135-degree point angle (135°) for fractional inch drill bit sizes (1/16 inch to 1/2 inch). This set is packaged in a metal index for organized storage and includes bits with an overall length varying from 1 7/8 inches up to 6 inches, with overall lengths from 1 7/8 inches to 6 inches.

Key Features:

  • contains 15 drill bits in sizes from 1/16 inch to 1/2 inch in 32nds increments
  • made from high-speed steel
  • jobber-length bits with overall lengths from 1 7/8" to 6"
  • two-flute spiral design with right-hand cutting direction and helix angles between 21° and 34°
  • split point tip with a 135-degree point angle (135°) for reduced walking on start
  • shank type is straight with three flats, shank diameter 1/16"
  • for use on aluminum, cast iron, and steel (ISO codes K, N, P)
  • complies with standards ASME B94.11M and DIN 338
  • includes a metal drill index for bit storage and organization
  • intended for drilling without coolant delivery with black and gold finish applied during machining
